13 Wall & Ceiling LED > The Chill Out LED Cylinders Dimmable

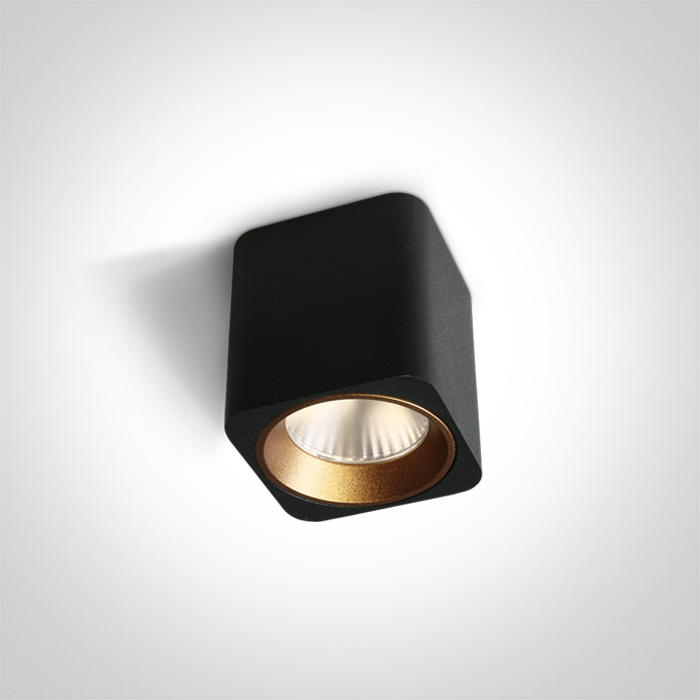

12107KA/B/W
7W AC LED Chill Out LED Cylinder, IP20.
Complies with standard EN60598-1 and any other specific standards.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
13 Wall & Ceiling LED
Family
The Chill Out LED Cylinders Dimmable
Order Code
12107KA/B/W
Colour
Black
Material
Aluminium
Shape
Rectangular
Length
60mm
Width
60mm
Height
65mm
Surface Ceiling
Yes
Indoor
Yes
Electrical Characteristics
Gear
No
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
7W
IP Rating
IP20
Light Source
LED built in
Dimmable
Yes
Dimmer type
Triac
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
500lm
Light Efficiency
71,42lm/W
CRI
80
Beam Angle
35°
Illumination Diagram
Packing Info
Box Length
8,5cm
Box Width
8,5cm
Box Height
8cm
Box Weight
0.340kg
Pcs/Carton
30
Barcode
5291889054337
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
17
