12 Wall & Ceiling LED > Surface Shop Square Boxes Aluminium
12107B/W/W

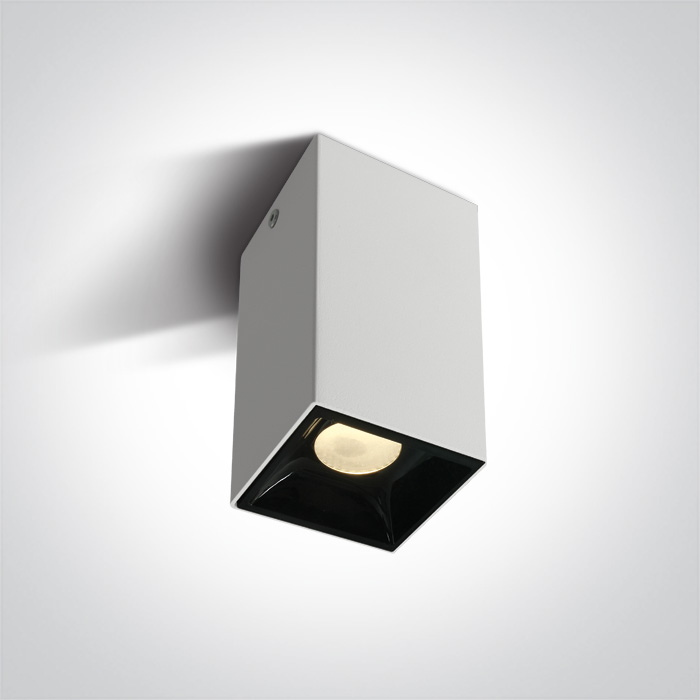

Surface dimmable spot with COB LED.
Complete with 350mA constant current dimmable driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 350mA constant current dimmable driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
12 Wall & Ceiling LED
Family
Surface Shop Square Boxes Aluminium
Order Code
12107B/W/W
Colour
White
Material
Aluminium
Shape
Rectangular
Length
54mm
Width
54mm
Height
100mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
7W
IP Rating
IP20
Light Source
LED built in
Dimmable
Yes
Dimmer type
Triac
F Mark
Fitting
Input Type
Constant Current
Input Current
350mA
Voltage
18,6V
Safety Class
Power (Watts)
6,5W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Citizen
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
4,2-8,4W
Power Factor
0,9
Constant Current
Yes
350mA
12-24V
IP Rating
IP20
Safety Class
Housing Material
Plastic
Illumination Data
Colour Temperature
3000K
Lumen Output
550lm
Light Efficiency
84,61lm/W
CRI
90
Beam Angle
36°
Illumination Diagram
Packing Info
Box Weight
0.427kg
Pcs/Carton
36
Barcode
5291889064695
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
