04 Recessed Spots Adjustable LED > The IP54 COB Outdoor/Bathroom Range
11207WD/W/W
2x6,5W LED Dark Light Recessed adjustable spot, IP54.
Requires 2x700mA drivers.
Complies with standard EN60598-1 and any other specific standards.
Requires 2x700mA drivers.
Complies with standard EN60598-1 and any other specific standards.

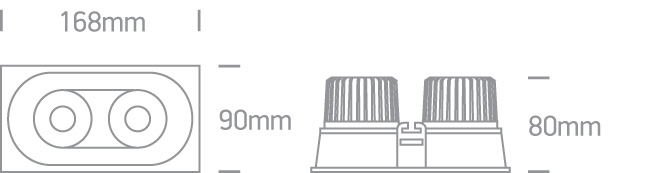

Dimensions
Downloads
Physical Specification
Item Group
04 Recessed Spots Adjustable LED
Family
The IP54 COB Outdoor/Bathroom Range
Order Code
11207WD/W/W
Colour
White
Material
Die Cast
Shape
Rectangular
Length
168mm
Width
90mm
Height
83mm
Cutout Hole Width
160mm
Cutout Hole Height
83mm
Recessed Ceiling
Yes
Depth Required
100mm
Indoor
Yes
Outdoor
Yes
Adjustable
1 Direction
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
700mA
Safety Class
Power (Watts)
2x6,5W
IP Rating
IP54
Light Source
LED built in
LED Type
COB
LED Brand
Bridgelux
LED Number
2
Cable Length
40cm
Fast Connector
One Light 700
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
2x600lm
Light Efficiency
92lm/W
CRI
90
Beam Angle
36°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
17,5cm
Box Width
9,5cm
Box Height
10cm
Box Weight
0.675kg
Pcs/Carton
16
Barcode
5291889050704
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
17
