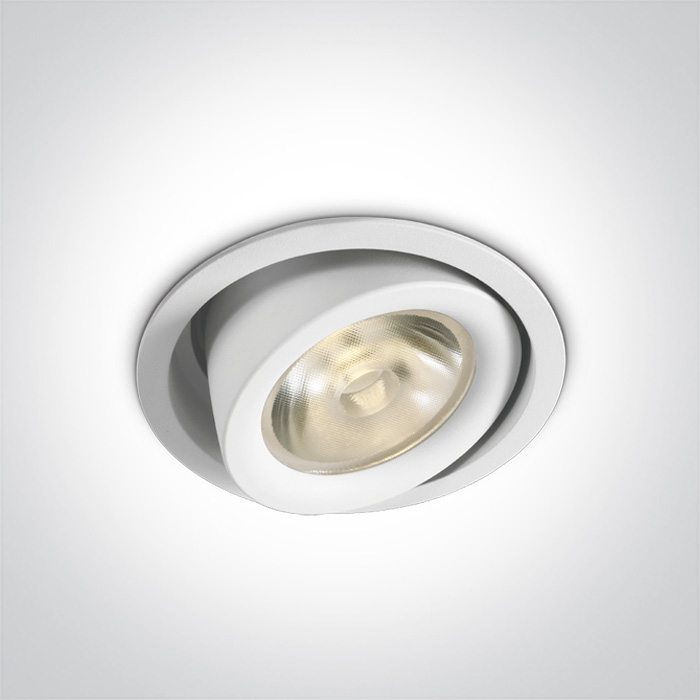

06 Downlights Adjustable > The COB Pop Up Aluminium
11126F/W/W
26W LED adjustable COB Extractable Range, IP20.
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
06 Downlights Adjustable
Family
The COB Pop Up Aluminium
Order Code
11126F/W/W
Colour
White
Material
Die Cast
Shape
Circular
Height
126mm
Diameter
125mm
Cutout Hole Diameter
116mm
Recessed Ceiling
Yes
Depth Required
150mm
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
700mA
Safety Class
Power (Watts)
26W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Citizen
Cable Length
40cm
Fast Connector
One Light 700
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
2210lm
Light Efficiency
85lm/W
CRI
92
Beam Angle
36°
Illumination Diagram
Packing Info
Box Weight
0.744kg
Pcs/Carton
18
Barcode
5291889067894
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
