06 Downlights Adjustable > Dark Mirror Reflector Range
11120E/W/W

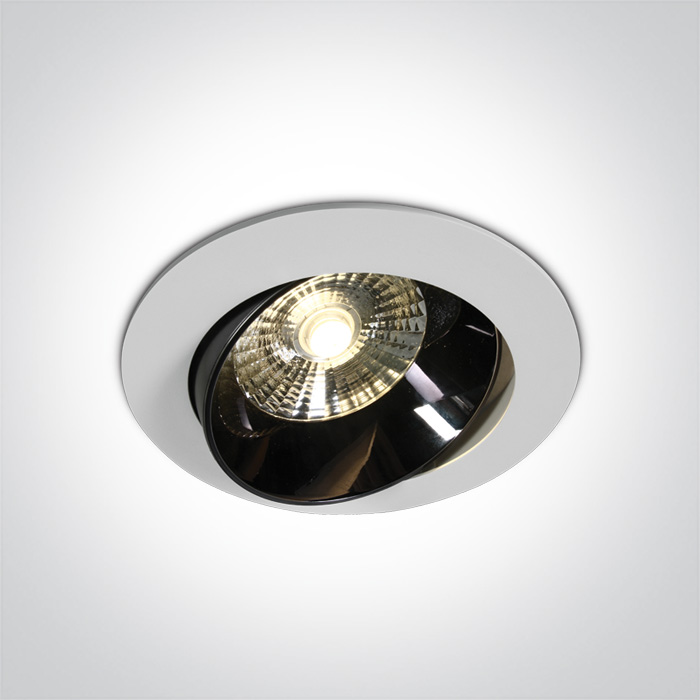

20W COB LED adjustable recessed Spot with dark chrome reflector.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

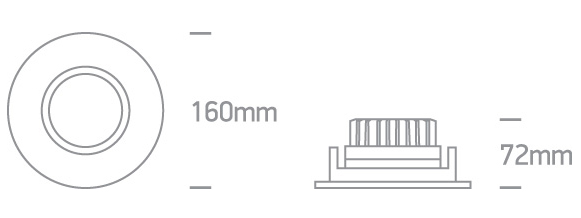

Dimensions
Downloads
Physical Specification
Item Group
06 Downlights Adjustable
Family
Dark Mirror Reflector Range
Order Code
11120E/W/W
Colour
White
Material
Die Cast
Shape
Circular
Height
72mm
Diameter
160mm
Cutout Hole Diameter
140mm
Recessed Ceiling
Yes
Depth Required
110mm
Indoor
Yes
Adjustable
1 Direction
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
20W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
500mA
Voltage
36,9V
Safety Class
Power (Watts)
18,45W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Cree
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
12,5-20W
Power Factor
0,9
Constant Current
Yes
500mA
25-40V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
1700lm
Light Efficiency
85lm/W
CRI
80
Beam Angle
30°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.740kg
Pcs/Carton
20
Barcode
5291889064213
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
