04 Recessed Spots Adjustable LED > The COB Cylinders
.jpg)
11112RB/W/W

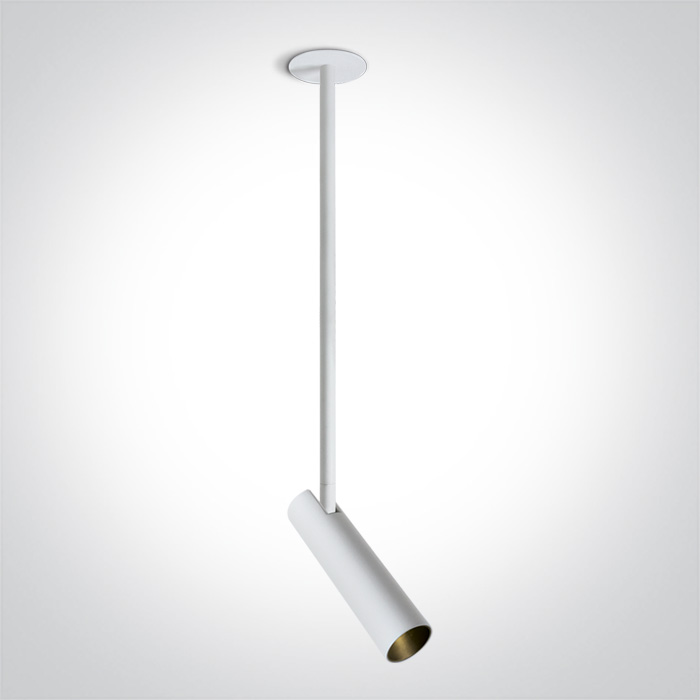

12W COB LED recessed adjustable spot, white with black reflector for general lighting
applications.
Requires 350mA constant current LED driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 350mA constant current LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
04 Recessed Spots Adjustable LED
Family
The COB Cylinders
Order Code
11112RB/W/W
Colour
White
Material
Aluminium
Shape
Circular
Height
155mm
Diameter
65
Cutout Hole Diameter
55mm
Recessed Ceiling
Yes
Depth Required
50mm
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
350mA
Voltage
34,4V
Safety Class
Power (Watts)
12W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Citizen
LED Number
1
Cable Length
40cm
Fast Connector
One Light 350/500
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
1020lm
Light Efficiency
85lm/W
CRI
90
Beam Angle
36°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
9,5cm
Box Width
9,5cm
Box Height
62cm
Box Weight
0.705kg
Pcs/Carton
18
Barcode
5291889058304
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
