04 Recessed Spots Adjustable LED > The COB Recessed Cylinders
11111C/W/V
12W CCT Variable COB LED recessed adjustable spot, IP20.

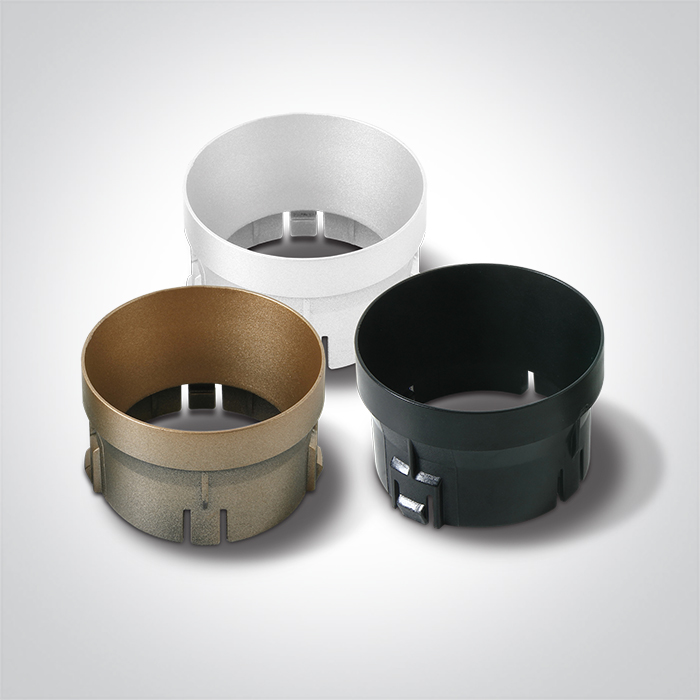

Supplied with Black, White & Brass reflectors.
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with Black, White & Brass reflectors.
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards.

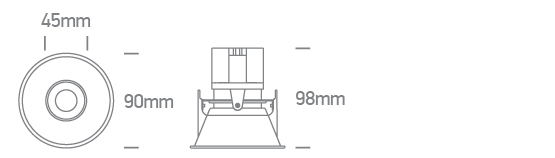

Dimensions
Downloads
Physical Specification
Item Group
04 Recessed Spots Adjustable LED
Family
The COB Recessed Cylinders
Order Code
11111C/W/V
Colour
White
Material
Aluminium
Shape
Circular
Height
98mm
Diameter
90mm
Cutout Hole Diameter
85mm
Recessed Ceiling
Yes
Depth Required
110mm
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
700mA
Safety Class
Power (Watts)
12W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
Cable Length
40cm
Fast Connector
One Light 700
F Mark
Illumination Data
Colour Temperature
3000K-3500K-4000K
Lumen Output
900lm
Light Efficiency
75lm/W
CRI
90
Beam Angle
40°
Illumination Diagram
Dark Light
Yes
Packing Info
Pcs/Carton
20
Barcode
5291889087458
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
