06 Downlights Adjustable > Adjustable R111 Range
11110TR/B

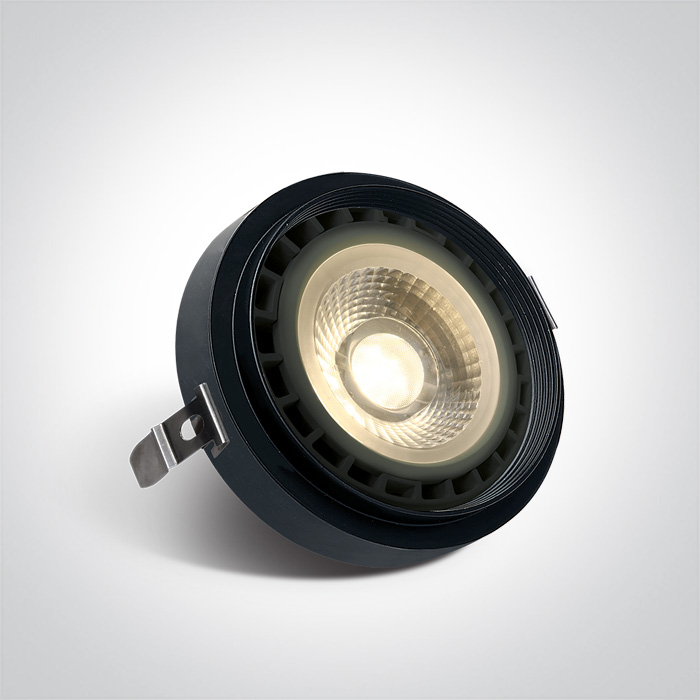

Trimless Multi System Module R111 with GU10 lampholder.
Complies with standard EN60598-1 and any other specific standards.
Complies with standard EN60598-1 and any other specific standards.

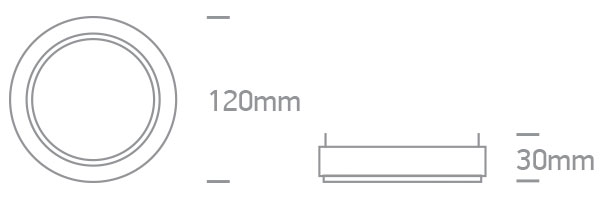

Dimensions
Downloads
Physical Specification
Item Group
06 Downlights Adjustable
Family
Adjustable R111 Range
Order Code
11110TR/B
Colour
Black
Material
Die Cast
Shape
Circular
Height
30mm
Diameter
120mm
Recessed Ceiling
Yes
Depth Required
80mm
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
No
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
75W
IP Rating
IP20
Light Source
Replaceable lamp
Lamp Holder
GU10
Number of Lamps
1
Dimmable
N/A
Cable Length
25cm
F Mark
Illumination Data
Illumination Diagram
Packing Info
Box Length
12cm
Box Width
12cm
Box Height
12cm
Box Weight
0.191kg
Pcs/Carton
2
Barcode
5291889019893
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
13
