06 Downlights Adjustable > Dark Mirror Reflector Range
11110E/W/W
10W COB LED adjustable recessed Spot with dark chrome reflector.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

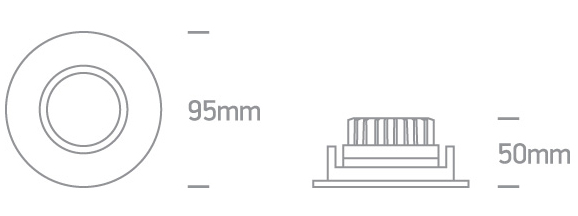

Dimensions
Downloads
Physical Specification
Item Group
06 Downlights Adjustable
Family
Dark Mirror Reflector Range
Order Code
11110E/W/W
Colour
White
Material
Die Cast
Shape
Circular
Height
50mm
Diameter
95mm
Cutout Hole Diameter
85mm
Recessed Ceiling
Yes
Depth Required
80mm
Indoor
Yes
Adjustable
1 Direction
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
10W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
250mA
Voltage
35,5V
Safety Class
Power (Watts)
8,9W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Cree
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
8,25-10,5W
Power Factor
0,9
Constant Current
Yes
250mA
25-42V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
850lm
Light Efficiency
85lm/W
CRI
80
Beam Angle
30°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.292kg
Pcs/Carton
40
Barcode
5291889064206
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
