ONE Light

    • 06 Downlights Adjustable > Adjustable R111 Range

    11110AB/B
    11110AB/B

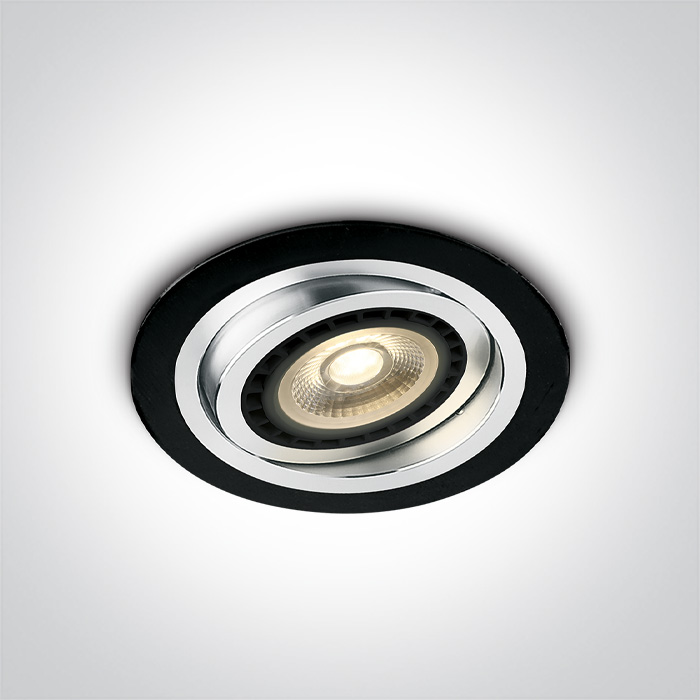

    Recessed adjustable R111 downlight round range with G53 lampholder.

    Complies with standard EN60598-1 and any other specific standards.
    Indoor
    Ceiling
    IP
    Adjustable
    Beam Angle
    CE

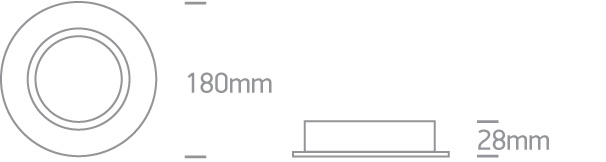

    Dimensions
    Downloads
    Product PDF Installation Manual Photo Download

    Physical Specification

    +
    Item Group
    06 Downlights Adjustable
    Family
    Adjustable R111 Range
    Order Code
    11110AB/B
    Colour
    Black
    Material
    Aluminium
    Shape
    Circular
    Height
    28mm
    Diameter
    180mm
    Cutout Hole Diameter
    150mm
    Recessed Ceiling
    Yes
    Depth Required
    75mm
    Indoor
    Yes
    Adjustable
    2 Directions

    Electrical Characteristics

    +
    Gear
    Order Separately
    Fitting
    Input Type
    Constant Voltage
    Input Voltage
    12V AC/DC
    Safety Class
    Power (Watts)
    75W
    IP Rating
    IP20
    Light Source
    Replaceable lamp
    Lamp Holder
    G53
    Number of Lamps
    1
    LED Number
    0
    Cable Length
    40cm

    Illumination Data

    +
    Illumination Diagram

    Packing Info

    +
    Box Length
    13,5cm
    Box Width
    8cm
    Box Height
    16,5cm
    Box Weight
    0.430kg
    Pcs/Carton
    20
    Barcode
    5291889043737
    HS Code
    9405413990

    Energy Label

    +

    Certification & Warranty

    +
    Warranty
    5 years
    Wee Directive
    Yes
    Year in which the CE mark was affixed
    14
