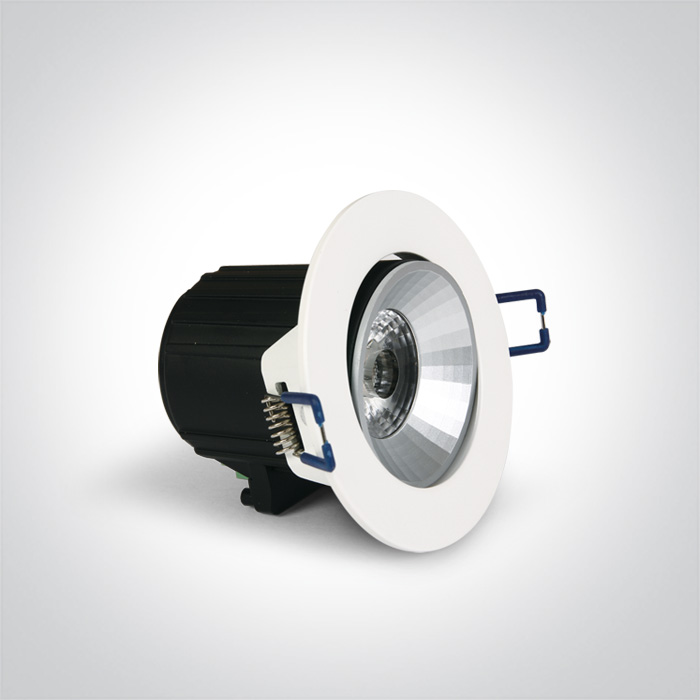

04 Recessed Spots Adjustable LED > The Dimmable Reflector Spots
11109KD/W/W
9,2W LED adjustable recessed spot, with built-in 230V LED
driver, made of plastic.
Supplied with TRIAC dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
04 Recessed Spots Adjustable LED
Family
The Dimmable Reflector Spots
Order Code
11109KD/W/W
Material
Aluminium
Diffuser Material
Acrylic
Shape
Circular
Height
62mm
Diameter
86mm
Cutout Hole Diameter
67mm
Recessed Ceiling
Yes
Depth Required
90mm
Indoor
Yes
Adjustable
1 Direction
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
9,2W
IP Rating
IP20
Light Source
LED built in
Dimmable
Yes
Dimmer type
Triac
F Mark
Fitting
Input Type
Constant Current
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Sanan
LED Number
1
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
9,2W
Constant Current
Yes
IP Rating
IP20
Safety Class
Dimmable
Yes
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
620lm
Light Efficiency
67,4lm/W
CRI
80
Beam Angle
38°
Illumination Diagram
Packing Info
Box Length
10cm
Box Width
10cm
Box Height
8,5cm
Box Weight
0.233kg
Pcs/Carton
48
Barcode
5291889038689
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
15
