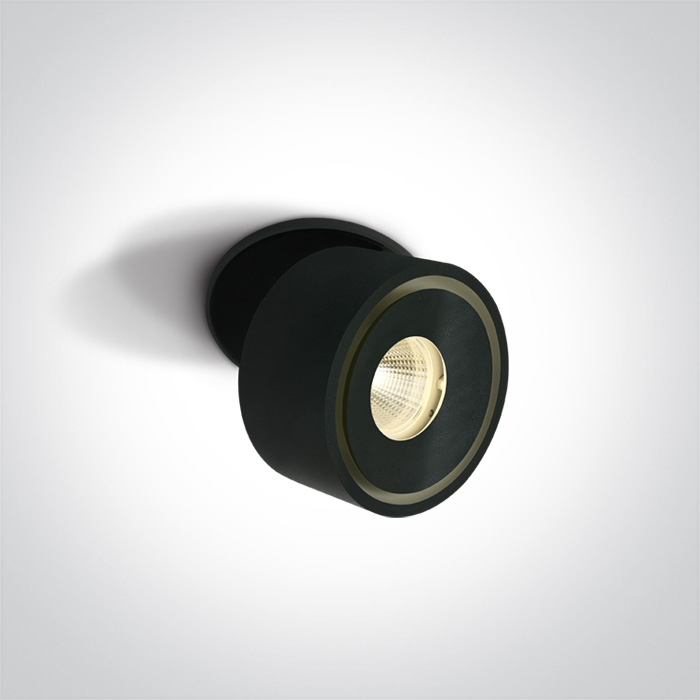

04 Recessed Spots Adjustable LED > Swivel Range Aluminium
11108LA/B/W
8W COB LED recessed adjustable spot, for general lighting
applications.
Complete with 200mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 200mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
04 Recessed Spots Adjustable LED
Family
Swivel Range Aluminium
Order Code
11108LA/B/W
Colour
Black
Material
Aluminium
Shape
Circular
Height
40mm
Diameter
78mm
Cutout Hole Diameter
68mm
Recessed Ceiling
Yes
Depth Required
50mm
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
8W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
200mA
Voltage
37V
Safety Class
Power (Watts)
7,4W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Cree
LED Number
1
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
6,4-8W
Power Factor
0,5
Constant Current
Yes
200mA
32-40V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
600lm
Light Efficiency
75lm/W
CRI
80
Beam Angle
25°
Illumination Diagram
Packing Info
Box Length
10,5cm
Box Width
10,5cm
Box Height
11cm
Box Weight
0.433kg
Pcs/Carton
24
Barcode
5291889058892
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
