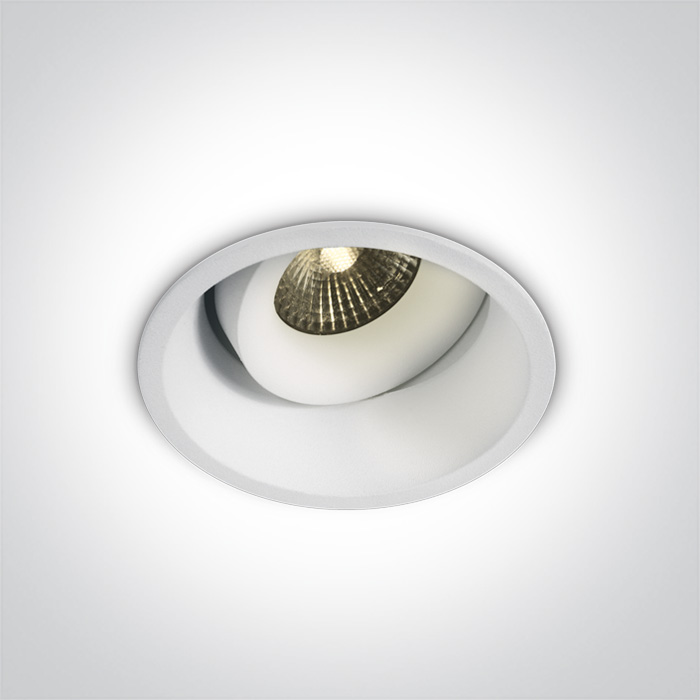

04 Recessed Spots Adjustable LED > The IP54 COB Outdoor/Bathroom Range
11107WD/W/V
6,5W CCT Variable LED Recessed adjustable spot, IP54.
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
04 Recessed Spots Adjustable LED
Family
The IP54 COB Outdoor/Bathroom Range
Order Code
11107WD/W/V
Colour
White
Material
Aluminium
Shape
Circular
Height
83mm
Diameter
90mm
Cutout Hole Diameter
83mm
Recessed Ceiling
Yes
Depth Required
110mm
Indoor
Yes
Outdoor
Yes
Adjustable
1 Direction
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
700mA
Safety Class
Power (Watts)
6,5W
IP Rating
IP54
Light Source
LED built in
LED Type
COB
Cable Length
40cm
Fast Connector
One Light 700
F Mark
Illumination Data
Colour Temperature
3000K-3500K-4000K
Lumen Output
600lm
Light Efficiency
92,3 lm/W
CRI
90
Beam Angle
38°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.297kg
Pcs/Carton
36
Barcode
5291889087410
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
