04 Recessed Spots Adjustable LED > The IP54 COB Outdoor/Bathroom Range
11107P/W/W

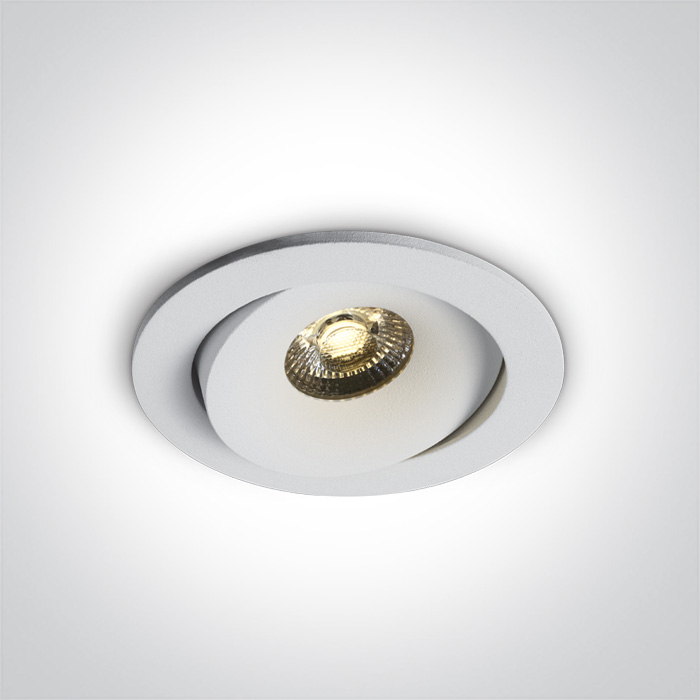

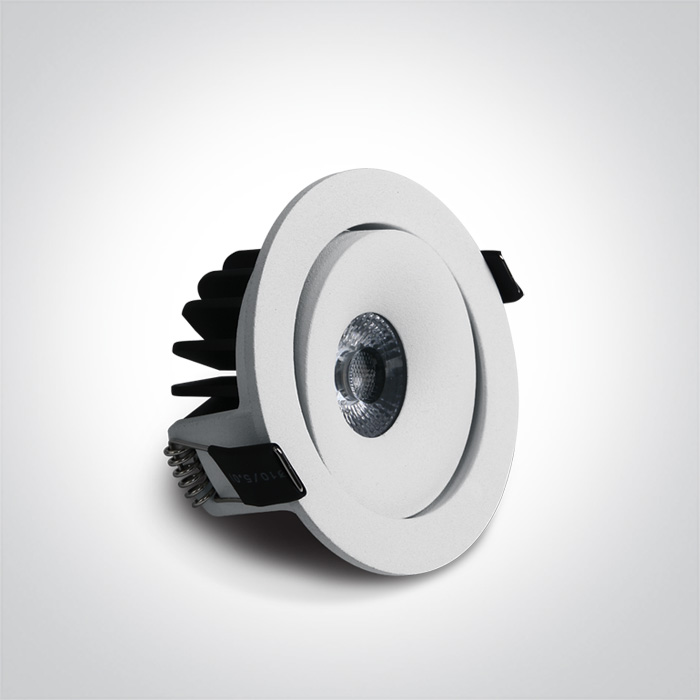

6,5W LED Recessed adjustable spot, ideal for bathroom and outdoor installation, IP54.
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
04 Recessed Spots Adjustable LED
Family
The IP54 COB Outdoor/Bathroom Range
Order Code
11107P/W/W
Colour
White
Material
Die Cast
Shape
Circular
Height
50mm
Diameter
80mm
Cutout Hole Diameter
70mm
Recessed Ceiling
Yes
Depth Required
80mm
Indoor
Yes
Outdoor
Yes
Adjustable
1 Direction
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
700mA
Safety Class
Power (Watts)
6,5W
IP Rating
IP54
Light Source
LED built in
LED Type
COB
LED Brand
Cree
LED Number
1
Cable Length
40cm
Fast Connector
One Light 700
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
600lm
Light Efficiency
92lm/W
CRI
90
Beam Angle
36°
Illumination Diagram
Packing Info
Box Length
8,5cm
Box Width
8,5cm
Box Height
6,5cm
Box Weight
0.231kg
Pcs/Carton
60
Barcode
5291889045229
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
17
