04 Recessed Spots Adjustable LED > The 6,5W COB Recessed Cylinders

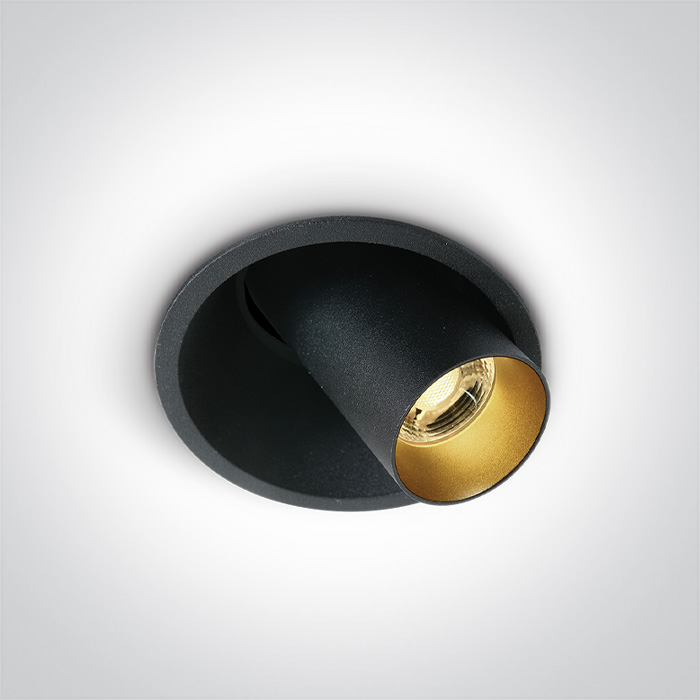

11107C/B/W
6,5W COB LED recessed adjustable spot, for general lighting
applications.
Requires 700mA constant current LED driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 700mA constant current LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
04 Recessed Spots Adjustable LED
Family
The 6,5W COB Recessed Cylinders
Order Code
11107C/B/W
Colour
Black
Material
Die Cast
Shape
Circular
Height
85mm
Diameter
90mm
Cutout Hole Diameter
83mm
Recessed Ceiling
Yes
Depth Required
80mm
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
700mA
Voltage
9,3V
Safety Class
Power (Watts)
6,5W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Bridgelux
LED Number
1
Cable Length
40cm
Fast Connector
One Light 700
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
550lm
Light Efficiency
84lm/W
CRI
90
Beam Angle
36°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
10cm
Box Width
10cm
Box Height
10cm
Box Weight
0.297kg
Pcs/Carton
36
Barcode
5291889058397
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
