04 Recessed Spots Adjustable LED > The 7W COB Range
11107B/W/V

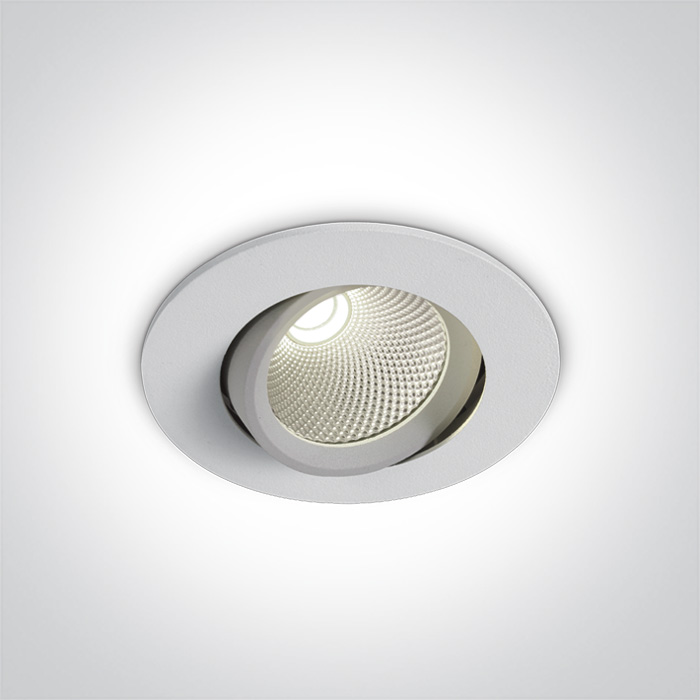

7W CCT Variable COB LED Adjustable recessed spot, IP20.
Complete with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
04 Recessed Spots Adjustable LED
Family
The 7W COB Range
Order Code
11107B/W/V
Colour
White
Material
Aluminium
Shape
Circular
Height
55mm
Diameter
90mm
Cutout Hole Diameter
75mm
Recessed Ceiling
Yes
Depth Required
75mm
Indoor
Yes
Adjustable
1 Direction
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
7W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Light Source
LED built in
LED Type
COB
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Output
200mA
Dimmable
No
Illumination Data
Colour Temperature
3000K-3500K-4000K
Lumen Output
560lm
Light Efficiency
80lm/W
CRI
90
Beam Angle
60°
Illumination Diagram
Packing Info
Box Weight
0.228kg
Pcs/Carton
50
Barcode
5291889086833
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
