04 Recessed Spots Adjustable LED > The Trimless COB Spots
.jpg)
11107BT/W/V
6,5W CCT Variable COB LED recessed trimless adjustable spot, IP54.
Requires 700mA constant current LED driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 700mA constant current LED driver.
Complies with standard EN60598-1 and any other specific standards.

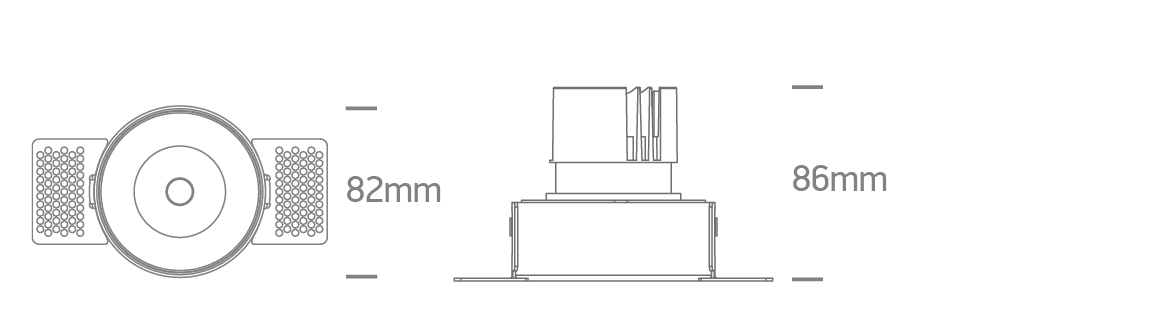

Dimensions
Downloads
Physical Specification
Item Group
04 Recessed Spots Adjustable LED
Family
The Trimless COB Spots
Order Code
11107BT/W/V
Colour
White
Material
Aluminium
Shape
Circular
Height
86mm
Diameter
82mm
Cutout Hole Diameter
94mm
Recessed trimmless ceiling
Yes
Depth Required
105mm
Indoor
Yes
Outdoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
700mA
Safety Class
Power (Watts)
6,5W
IP Rating
IP54
Light Source
LED built in
LED Type
COB
LED Number
1
Cable Length
40cm
Fast Connector
One Light 700
F Mark
Illumination Data
Colour Temperature
3000K-3500K-4000K
Lumen Output
650lm
Light Efficiency
100lm/W
CRI
90
Beam Angle
36°
Illumination Diagram
Dark Light
Yes
Packing Info
Pcs/Carton
30
Barcode
5291889087359
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
