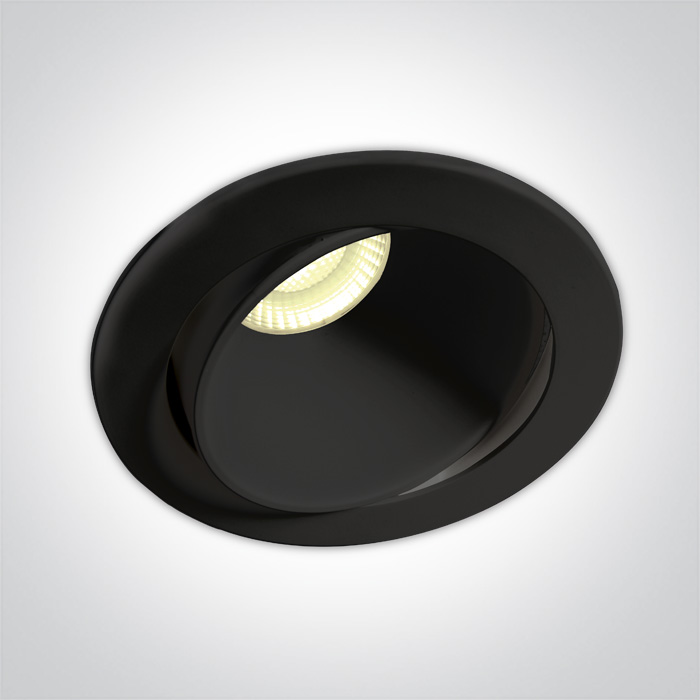

04 Recessed Spots Adjustable LED > The COB Outdoor/Bathroom Range
11106PK/B/W
8W Dark light adjustable recessed spot.
Supplied with dimmable driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with dimmable driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
04 Recessed Spots Adjustable LED
Family
The COB Outdoor/Bathroom Range
Order Code
11106PK/B/W
Colour
Black
Material
Plastic
Shape
Circular
Height
84mm
Diameter
106mm
Cutout Hole Diameter
92mm
Recessed Ceiling
Yes
Depth Required
120mm
Indoor
Yes
Outdoor
Yes
Adjustable
1 Direction
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
8W
IP Rating
IP54
Light Source
LED built in
Dimmable
Yes
Dimmer type
Triac
F Mark
Fitting
Input Type
Constant Current
Input Current
100mA
Power (Watts)
7W
IP Rating
IP54
Light Source
LED built in
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Output
100mA
IP Rating
IP20
Safety Class
Illumination Data
Colour Temperature
3000K
Lumen Output
850lm
Light Efficiency
106,25lm/W
CRI
80
Beam Angle
60°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.240kg
Pcs/Carton
30
Barcode
5291889080756
HS Code
9405114090
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
24
