04 Recessed Spots Adjustable LED > The Reflector Spots
11106K/W

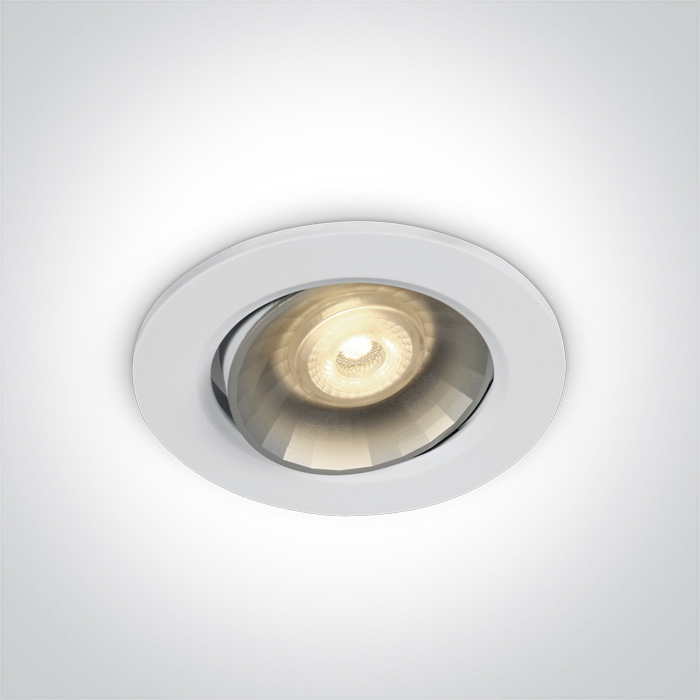

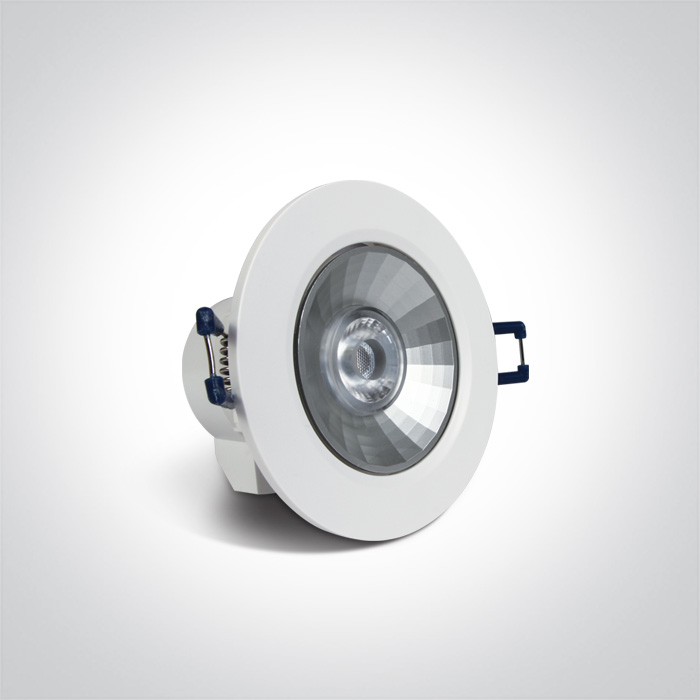

6W LED adjustable recessed spot, with built-in 100-240V LED

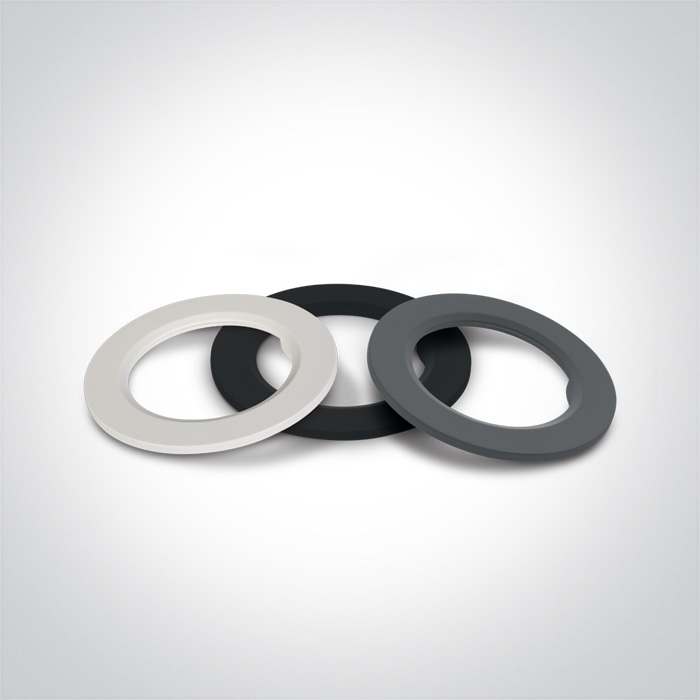

driver, made of plastic, with 3 plastic rings, white, black and
grey colour.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

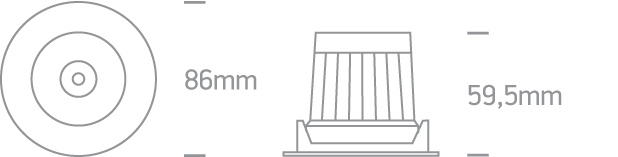

Dimensions

Downloads
Physical Specification
Item Group
04 Recessed Spots Adjustable LED
Family
The Reflector Spots
Order Code
11106K/W
Material
Plastic
Shape
Circular
Height
59,5mm
Diameter
86mm
Cutout Hole Diameter
67mm
Recessed Ceiling
Yes
Depth Required
90mm
Indoor
Yes
Adjustable
1 Direction
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class

Power (Watts)
6W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark

Fitting
Input Type
Constant Current
IP Rating
IP20
Light Source
LED built in
LED Brand
Nichia
LED Number
1
F Mark

Gear
Gear Type
Led Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
6W
Constant Current
Yes
IP Rating
IP20
Safety Class

Dimmable
No
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
345lm
Light Efficiency
57,5lm/W
CRI
80
Beam Angle
38°
Illumination Diagram

Packing Info
Box Length
10cm
Box Width
10cm
Box Height
8,5cm
Box Weight
0.154kg
Pcs/Carton
48
Barcode
5291889035015
HS Code
9405114090
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
15
