03 Recessed Spots Adjustable > The Round Clip in Range
11105D8/W

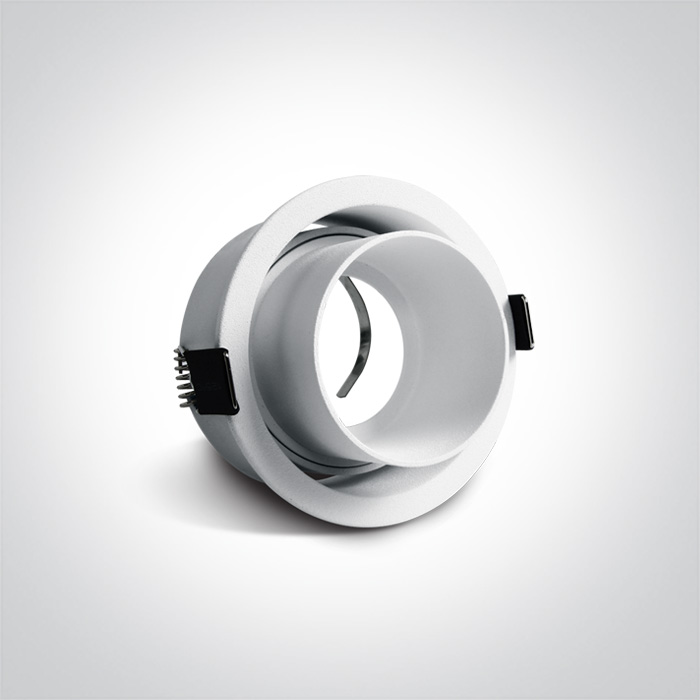

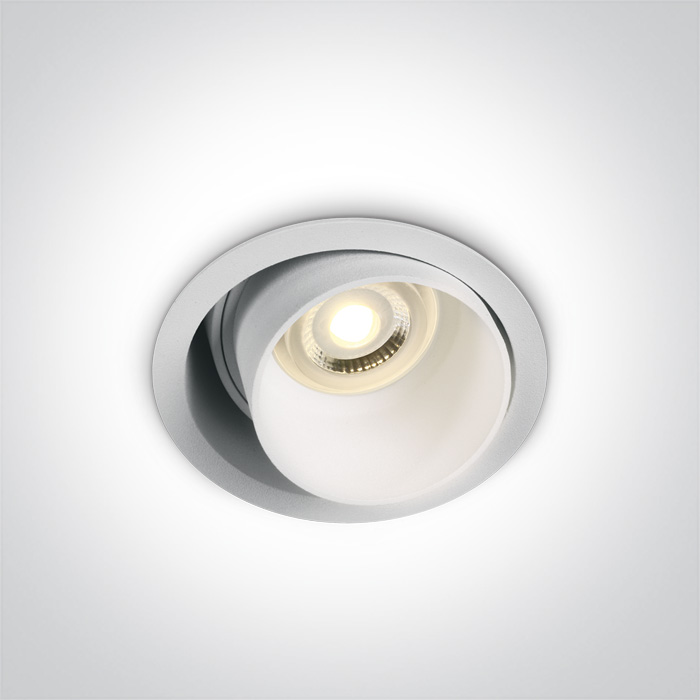

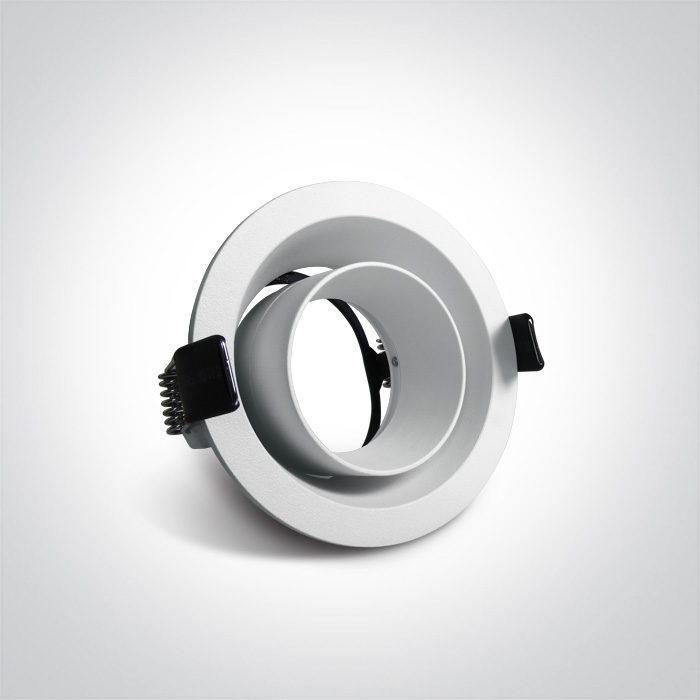

Dark Light Tube Range Recessed Round adjustable MR16 spot with GU10 lampholder.
Complies with standard EN60598-1 and any other specific standards.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
03 Recessed Spots Adjustable
Family
The Round Clip in Range
Order Code
11105D8/W
Colour
White
Material
Aluminium
Shape
Circular
Height
55mm
Diameter
83mm
Cutout Hole Diameter
76mm
Recessed Ceiling
Yes
Depth Required
130mm
Indoor
Yes
Adjustable
1 Direction
Electrical Characteristics
Gear
No
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
10W
IP Rating
IP20
Light Source
Replaceable lamp
Lamp Holder
GU10
Number of Lamps
1
Dimmable
N/A
Cable Length
15cm
F Mark
Illumination Data
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
8,5cm
Box Width
8,5cm
Box Height
8,5cm
Box Weight
0.200kg
Pcs/Carton
60
Barcode
5291889049326
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
16
