05 Downlights Fixed > The COB Downlight Range Aluminium
10160CA/W/C

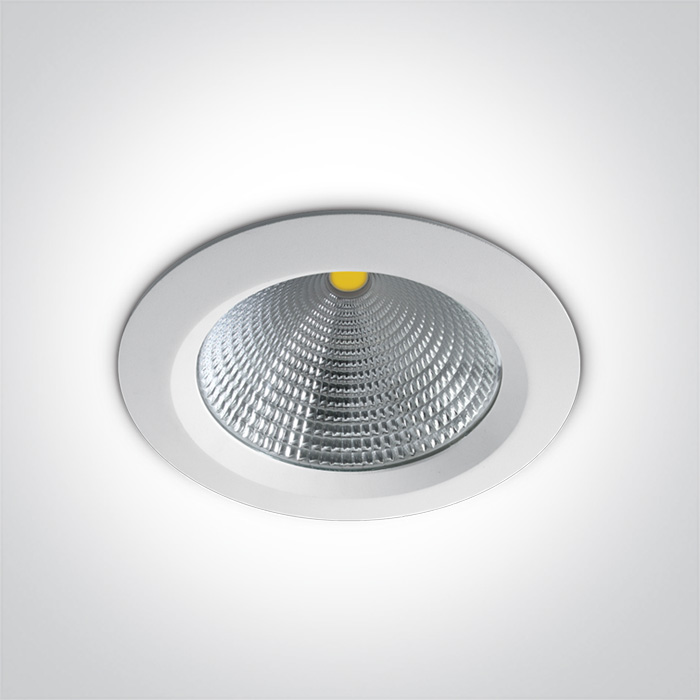

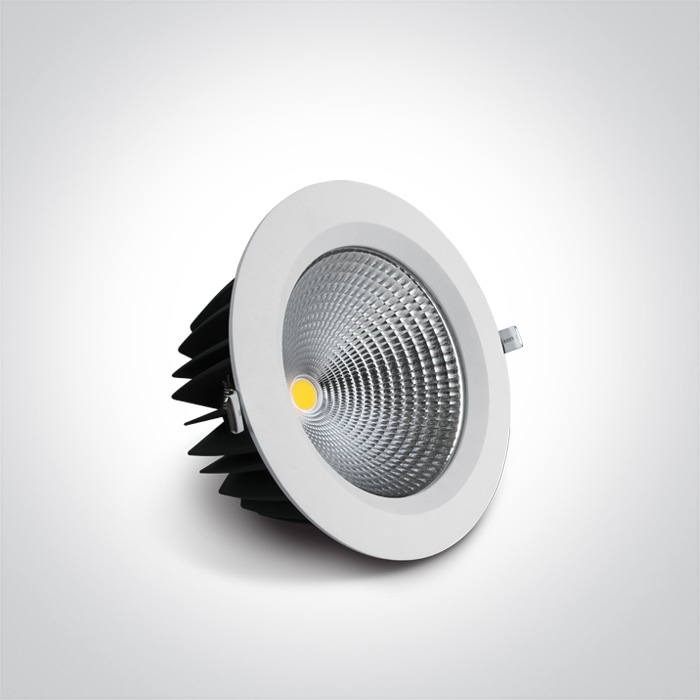

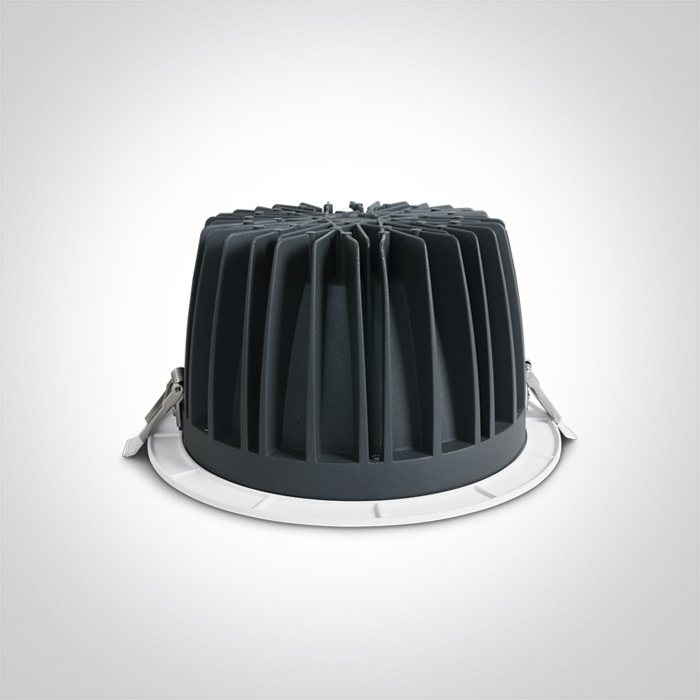

60W LED recessed downlight, IP20. Ideal for general lighting applications.
Complete with 1500mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 1500mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
05 Downlights Fixed
Family
The COB Downlight Range Aluminium
Order Code
10160CA/W/C
Colour
White
Material
Die Cast
Shape
Circular
Height
120mm
Diameter
230mm
Cutout Hole Diameter
210mm
Recessed Ceiling
Yes
Depth Required
160mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
60W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
1500mA
Voltage
35,4V
Safety Class
Power (Watts)
58,6W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Epistar
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
37,5-63W
Power Factor
0,9
Constant Current
Yes
1500mA
25-42V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
45°C
Operating Temp
85°C
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
4000K
Lumen Output
5400lm
Light Efficiency
90lm/W
CRI
90
Beam Angle
60°
Illumination Diagram
Packing Info
Box Length
23,5cm
Box Width
11,5cm
Box Height
23,5cm
Box Weight
1.850kg
Pcs/Carton
10
Barcode
5291889052067
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Average Lifetime
30000hrs
Wee Directive
Yes
Year in which the CE mark was affixed
17
