05 Downlights Fixed > The 40-48W Round Recessed Panels Die Cast
10148PE/W/W
48W slim downlight LED, IP40, ideal for commercial
applications such as offices, galleries and showrooms.
Requires 1200mA LED driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 1200mA LED driver.
Complies with standard EN60598-1 and any other specific standards.

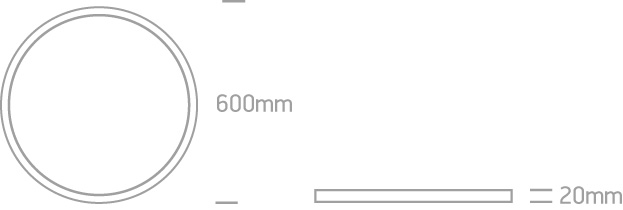

Dimensions
Downloads
Physical Specification
Item Group
05 Downlights Fixed
Family
The 40-48W Round Recessed Panels Die Cast
Order Code
10148PE/W/W
Colour
White
Material
Die Cast
Diffuser Material
Acrylic
Shape
Circular
Height
20mm
Diameter
600mm
Cutout Hole Diameter
585mm
Recessed Ceiling
Yes
Depth Required
80mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
1200mA
Safety Class
Power (Watts)
48W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Epistar
LED Number
240
Illumination Data
Colour Temperature
3000K
Lumen Output
3500lm
Light Efficiency
72,91lm/W
CRI
80
Beam Angle
120°
Illumination Diagram
Packing Info
Box Length
72cm
Box Width
65cm
Box Height
4,5cm
Box Weight
3.450kg
Pcs/Carton
4
Barcode
5291889041863
HS Code
9405119090
Energy Label
Certification & Warranty
Warranty
2 years
Average Lifetime
30000 hours
Wee Directive
Yes
Year in which the CE mark was affixed
15
