05 Downlights Fixed > UGR 19 CCT V Office Range Round
10130U/W/V

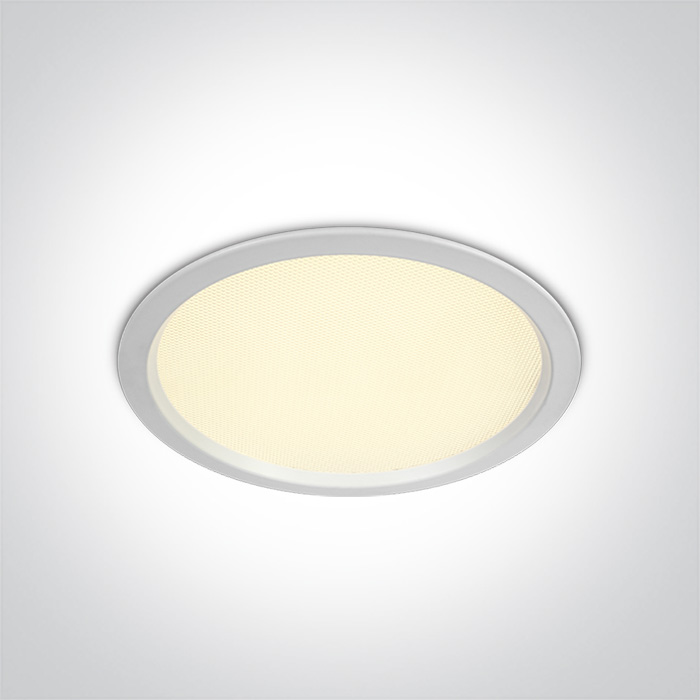

30W SMD LED UGR19 CCT Variable downlight, IP44.
Complete with 750mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 750mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
05 Downlights Fixed
Family
UGR 19 CCT V Office Range Round
Order Code
10130U/W/V
Colour
White
Material
Die Cast
Shape
Circular
Height
45mm
Diameter
220mm
Cutout Hole Diameter
205mm
Recessed Ceiling
Yes
Depth Required
65mm
Indoor
Yes
Adjustable
No
IK Rating
4
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
30W
IP Rating
IP44
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
750mA
Safety Class
IP Rating
IP44
Light Source
LED built in
LED Type
SMD 2835
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Constant Current
Yes
IP Rating
IP44
Safety Class
Dimmable
No
Illumination Data
Colour Temperature
3000K-4000K-6000K
Lumen Output
2500lm
Light Efficiency
83lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
0.990kg
Pcs/Carton
10
Barcode
5291889080886
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
24
