06 Downlights Fixed LED > UGR19 Office Range
10130U/W/C

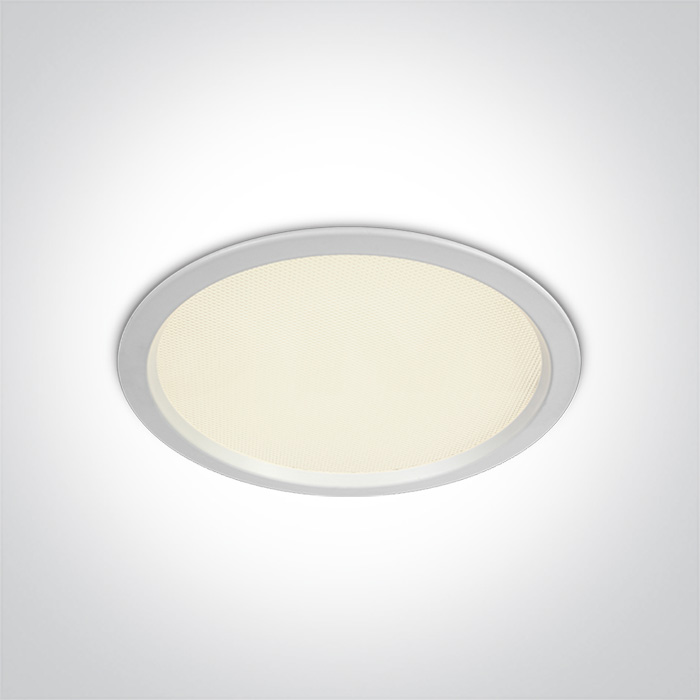

30W SMD LED UGR19 downlight, IP44.
Complete with 750mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 750mA driver.
Complies with standard EN60598-1 and any other specific standards.

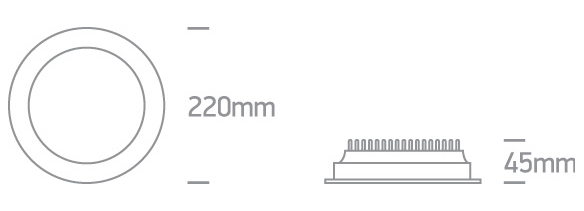

Dimensions
Downloads
Physical Specification
Item Group
06 Downlights Fixed LED
Family
UGR19 Office Range
Order Code
10130U/W/C
Colour
White
Material
Die Cast
Shape
Circular
Height
45mm
Diameter
220mm
Cutout Hole Diameter
205mm
Recessed Ceiling
Yes
Depth Required
65mm
Indoor
Yes
Adjustable
No
IK Rating
4
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
30W
IP Rating
IP44
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
750mA
Voltage
38V
Safety Class
Power (Watts)
28,5W
IP Rating
IP44
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Epistar
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
19,75-30W
Power Factor
0,9
Constant Current
Yes
750mA
25-40V
IP Rating
IP44
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
4000K
Lumen Output
2250lm
Light Efficiency
75lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
0.990kg
Pcs/Carton
10
Barcode
5291889065371
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Average Lifetime
30000hrs
Wee Directive
Yes
Year in which the CE mark was affixed
19
