05 Downlights Fixed > The IP54 & IP65 Downlights CCT V

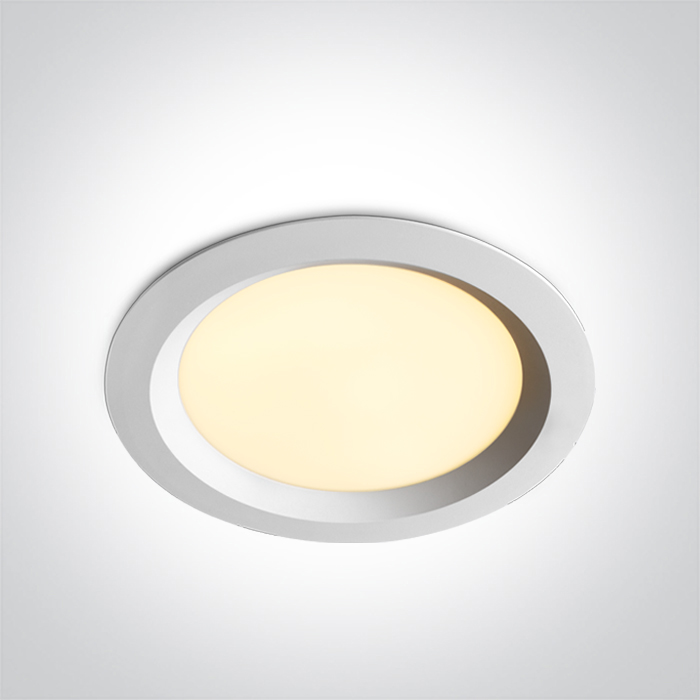

10130BX/W/V
30W CCT Variable SMD recessed downlight.
Complete with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
05 Downlights Fixed
Family
The IP54 & IP65 Downlights CCT V
Order Code
10130BX/W/V
Colour
White
Material
Aluminium
Shape
Circular
Height
55mm
Diameter
225mm
Cutout Hole Diameter
205mm
Recessed Ceiling
Yes
Depth Required
80mm
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
30W
IP Rating
IP65
Light Source
LED built in
F Mark
Fitting
Input Type
Constant Current
Input Current
700mA
Light Source
LED built in
LED Type
SMD
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Output
700mA
Illumination Data
Colour Temperature
3000K-4000K-5000K
Lumen Output
2700lm
Light Efficiency
90lm/W
CRI
90
Beam Angle
90
Illumination Diagram
Packing Info
Pcs/Carton
10
Barcode
5291889092711
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
