05 Downlights Fixed > The Dark Light Project Range

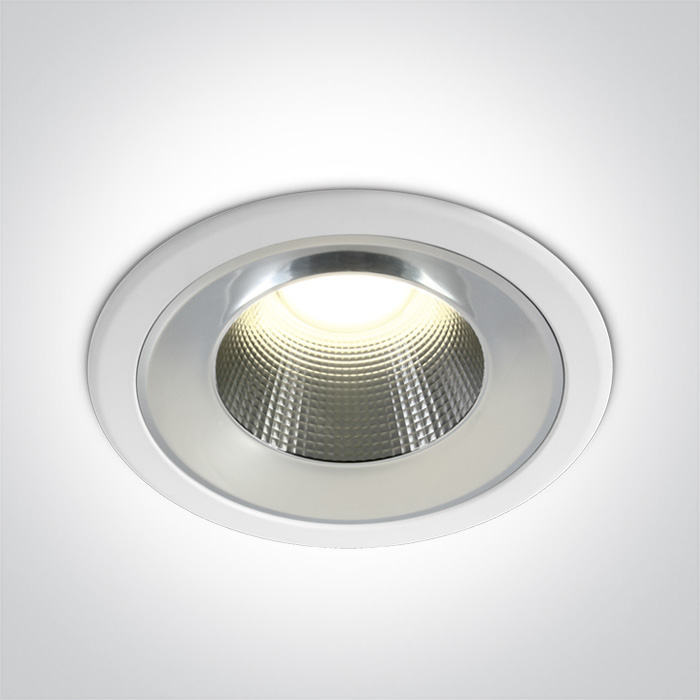

10125TD/W/C
25W LED recessed downlight, IP54. Suitable for Indoor/Outdoor
installation.
Complete with 600mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 600mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
05 Downlights Fixed
Family
The Dark Light Project Range
Order Code
10125TD/W/C
Colour
White
Material
Aluminium
Shape
Circular
Height
100mm
Diameter
235mm
Cutout Hole Diameter
210mm
Recessed Ceiling
Yes
Depth Required
140mm
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
25W
IP Rating
IP54
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
600mA
Voltage
39V
Safety Class
Power (Watts)
23,4W
IP Rating
IP54
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Epistar
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
18-24W
Power Factor
0,9
Constant Current
Yes
600mA
30-40V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
4000K
Lumen Output
2400lm
Light Efficiency
95lm/W
CRI
80
Beam Angle
60°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
25cm
Box Width
25cm
Box Height
10,8cm
Box Weight
0.683kg
Pcs/Carton
12
Barcode
5291889069690
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
