05 Downlights Fixed > The IP54 Downlights
10125B/W/C

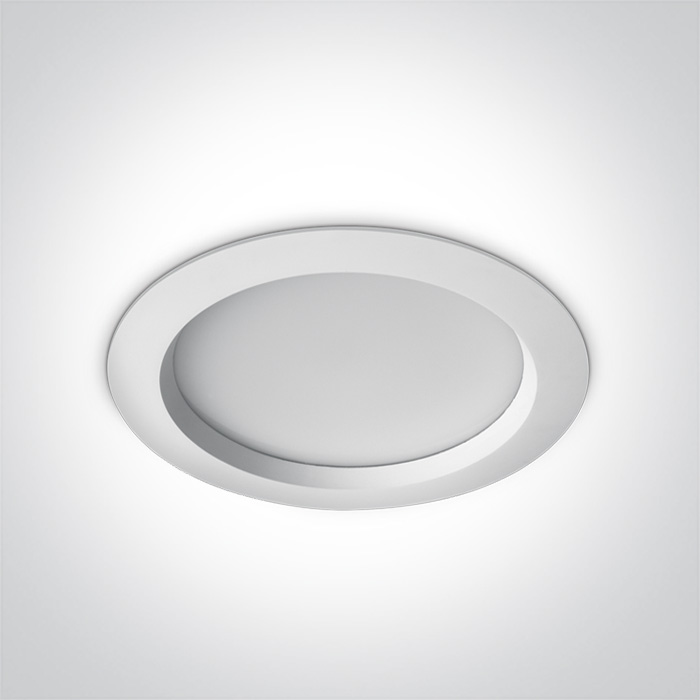

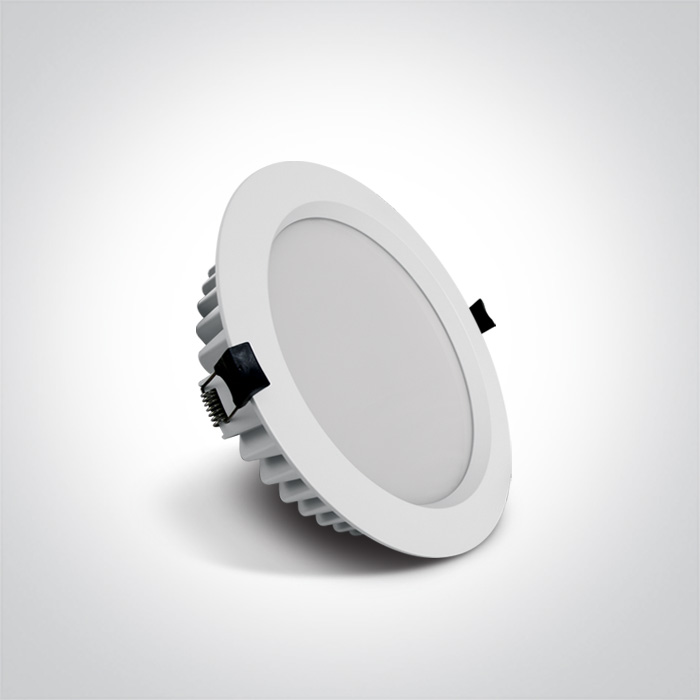

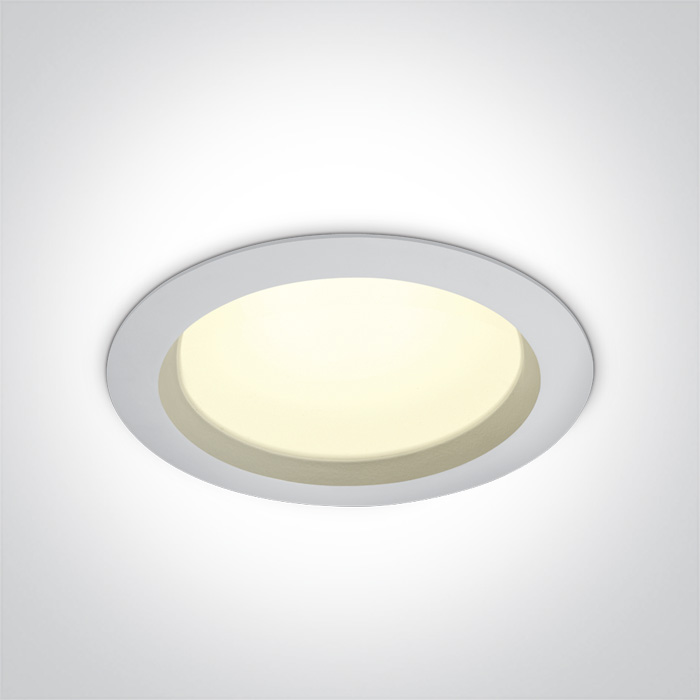

25W LED recessed downlight, IP54. Suitable for bathroom
installations.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
05 Downlights Fixed
Family
The IP54 Downlights
Order Code
10125B/W/C
Colour
White
Material
Die Cast
Diffuser Material
Plastic
Shape
Circular
Height
46mm
Diameter
228mm
Cutout Hole Diameter
210mm
Recessed Ceiling
Yes
Depth Required
80mm
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
25W
IP Rating
IP54
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
720mA
Voltage
32V
Safety Class
Power (Watts)
22,5W
IP Rating
IP54
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Epistar
LED Number
60
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
16,8-26,6W
Power Factor
0,9
Constant Current
Yes
Voltage Range
24-38V
Output
720mA
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
45°C
Operating Temp
70°C
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
4000K
Lumen Output
2000lm
Light Efficiency
80lm/W
CRI
80
Beam Angle
90°
Illumination Diagram
Packing Info
Box Length
26cm
Box Width
26cm
Box Height
7,5cm
Box Weight
1.230kg
Pcs/Carton
10
Barcode
5291889043232
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Average Lifetime
40000hrs
Wee Directive
Yes
Year in which the CE mark was affixed
16
