06 Downlights Fixed LED > The Chrome Bezel Range Aluminium
10124/G/C

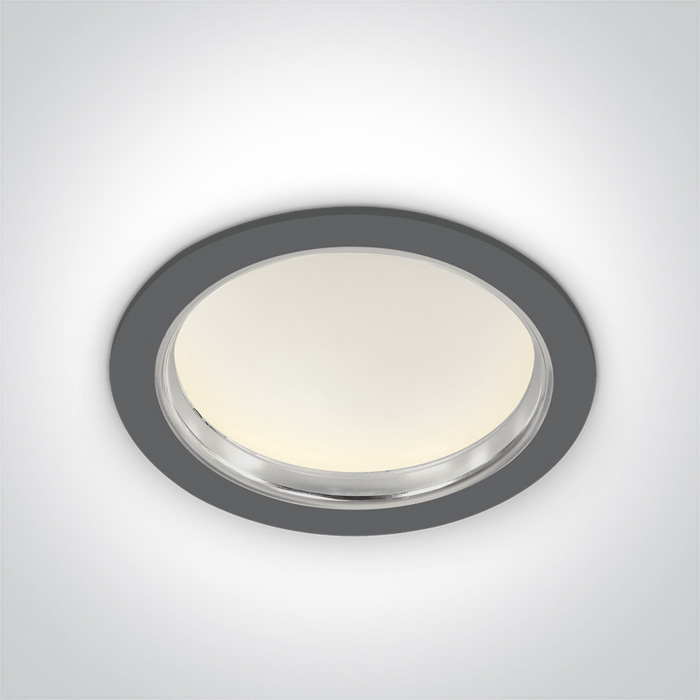

24W SMD LED recessed downlight, chrome bezel range, IP44.
Complete with 600mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 600mA driver.
Complies with standard EN60598-1 and any other specific standards.

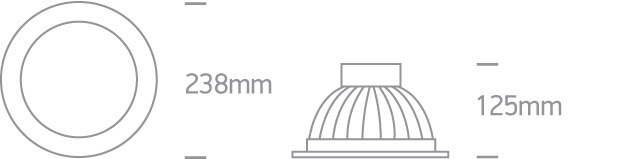

Dimensions
Downloads
Physical Specification
Item Group
06 Downlights Fixed LED
Family
The Chrome Bezel Range Aluminium
Order Code
10124/G/C
Colour
Grey
Material
Aluminium
Shape
Circular
Height
125mm
Diameter
238mm
Cutout Hole Diameter
210mm
Recessed Ceiling
Yes
Depth Required
160mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
24W
IP Rating
IP44
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
600mA
Voltage
36V
Power (Watts)
21,6W
IP Rating
IP44
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Sanan
LED Number
48
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
18-24W
Power Factor
0,9
Constant Current
Yes
600mA
30-40V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
50°
Operating Temp
80°
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
4000K
Lumen Output
1550lm
Light Efficiency
64,58lm/W
CRI
80
Beam Angle
120°
Illumination Diagram
Packing Info
Box Length
24,5cm
Box Width
24,5cm
Box Height
12,5cm
Box Weight
0.962kg
Pcs/Carton
8
Barcode
5291889034131
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
13
