05 Downlights Fixed > The IP20 SMD Dark Light Range CCT V
10122D/B/V

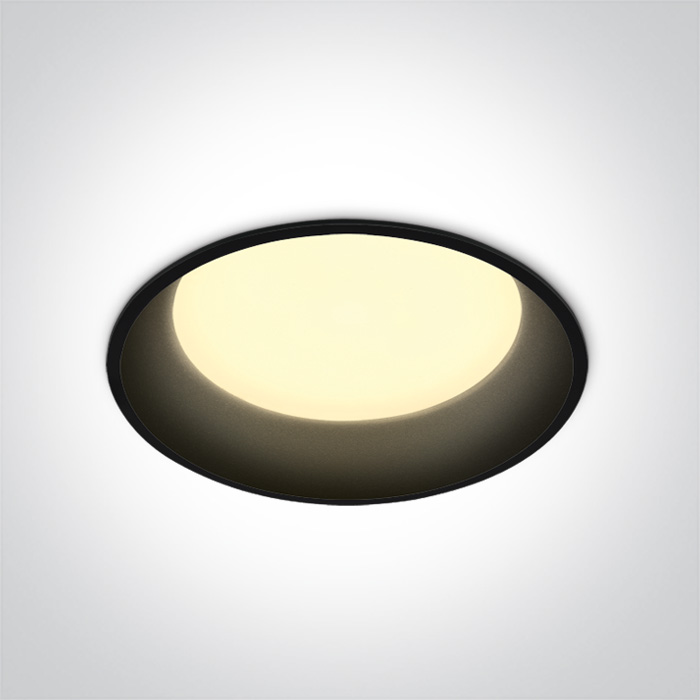

22W CCT Variable Dark Light LED Downlight .
Complete with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
05 Downlights Fixed
Family
The IP20 SMD Dark Light Range CCT V
Order Code
10122D/B/V
Colour
Black
Material
Die Cast
Shape
Circular
Height
55mm
Diameter
175mm
Cutout Hole Diameter
165mm
Recessed Ceiling
Yes
Depth Required
75mm
Indoor
Yes
Adjustable
No
IK Rating
7
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
22W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
600mA
Safety Class
IP Rating
IP20
Light Source
LED built in
LED Type
SMD
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Output
600mA
IP Rating
IP20
Safety Class
Dimmable
No
Illumination Data
Colour Temperature
3000K-4000K-5000K
Lumen Output
1900lm
Light Efficiency
86lm/W
CRI
90
Beam Angle
100°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.630kg
Pcs/Carton
20
Barcode
5291889081173
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
24
