05 Downlights Fixed > UGR19 CCT V Range

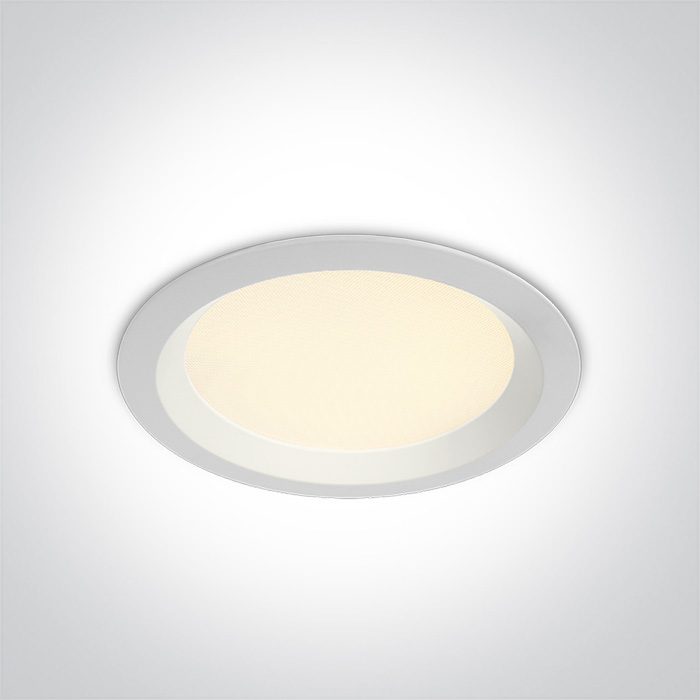

10120UV/W/V
20W SMD LED UGR19 downlight with adjustable CCT, IP44.
Complete with Non-flickering 500mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with Non-flickering 500mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
05 Downlights Fixed
Family
UGR19 CCT V Range
Order Code
10120UV/W/V
Colour
White
Material
Die Cast
Shape
Circular
Height
55mm
Diameter
190mm
Cutout Hole Diameter
170mm
Recessed Ceiling
Yes
Depth Required
75mm
Indoor
Yes
Adjustable
No
IK Rating
4
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
20W
IP Rating
IP44
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
500mA
Voltage
36V
Safety Class
Power (Watts)
19,8W
IP Rating
IP44
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Epistar
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
13,75-22W
Power Factor
0,9
Constant Current
Yes
500mA
25-40V
IP Rating
IP44
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K-4000K-6000K
Lumen Output
1500lm
Light Efficiency
75lm/W
CRI
90
Illumination Diagram
Packing Info
Box Weight
0.615kg
Pcs/Carton
20
Barcode
5291889065319
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Average Lifetime
30000hrs
Wee Directive
Yes
Year in which the CE mark was affixed
19
