05 Downlights Fixed > The Honeycomb Dark Light CCT V
10120DH/W/V

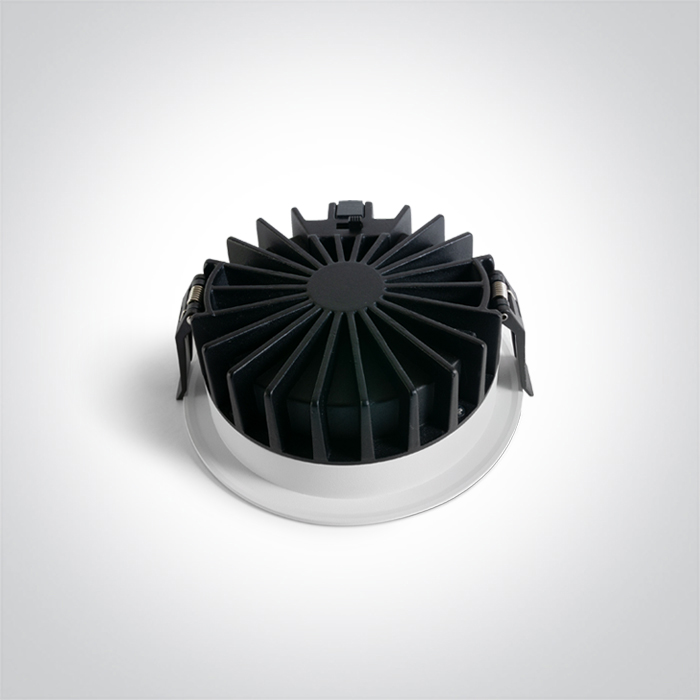

20W CCT Variable COB recessed downlight with honeycomb.
Complete with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
05 Downlights Fixed
Family
The Honeycomb Dark Light CCT V
Order Code
10120DH/W/V
Colour
White
Material
Aluminium
Shape
Circular
Height
50mm
Diameter
135mm
Cutout Hole Diameter
120mm
Recessed Ceiling
Yes
Depth Required
60mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
20W
IP Rating
IP20
Light Source
LED built in
F Mark
Fitting
Input Type
Constant Current
Input Current
500mA
Light Source
LED built in
LED Type
COB
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Output
500mA
Illumination Data
Colour Temperature
3000K-3500K-4000K
Lumen Output
1600lm
Light Efficiency
80lm/W
CRI
90
Beam Angle
36
Illumination Diagram
Dark Light
Yes
Packing Info
Pcs/Carton
20
Barcode
5291889092650
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
