06 Downlights Fixed LED > The COB Downlight Range Aluminium

10120C/W/W

20W COB LED recessed downlight, IP20.

Complete with 500mA driver.

Complies with standard EN60598-1 and any other specific standards.
Indoor
Ceiling
IP
CRI
Beam Angle
CE

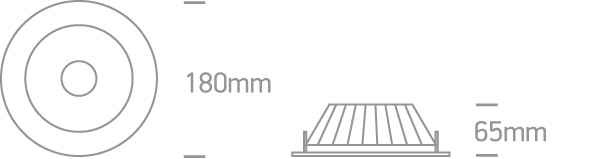

Dimensions
Downloads

Physical Specification

+
Item Group
06 Downlights Fixed LED
Family
The COB Downlight Range Aluminium
Order Code
10120C/W/W
Colour
White
Material
Aluminium
Shape
Circular
Height
65mm
Diameter
180mm
Cutout Hole Diameter
160mm
Recessed Ceiling
Yes
Depth Required
100mm
Indoor
Yes
Adjustable
No

Electrical Characteristics

+
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
20W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
500mA
Voltage
38V
Safety Class
Power (Watts)
19W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Epistar
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
13,5-21W
Power Factor
0,8
Constant Current
Yes
500mA
27-42V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable

Illumination Data

+
Colour Temperature
3000K
Lumen Output
1400lm
Light Efficiency
70lm/W
CRI
80
Beam Angle
80°
Illumination Diagram

Packing Info

+
Box Length
20cm
Box Width
20cm
Box Height
8cm
Box Weight
0.694kg
Pcs/Carton
18
Barcode
5291889040309
HS Code
9405413990

Energy Label

+

Certification & Warranty

+
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
16
