05 Downlights Fixed > The Dark Light Project Range

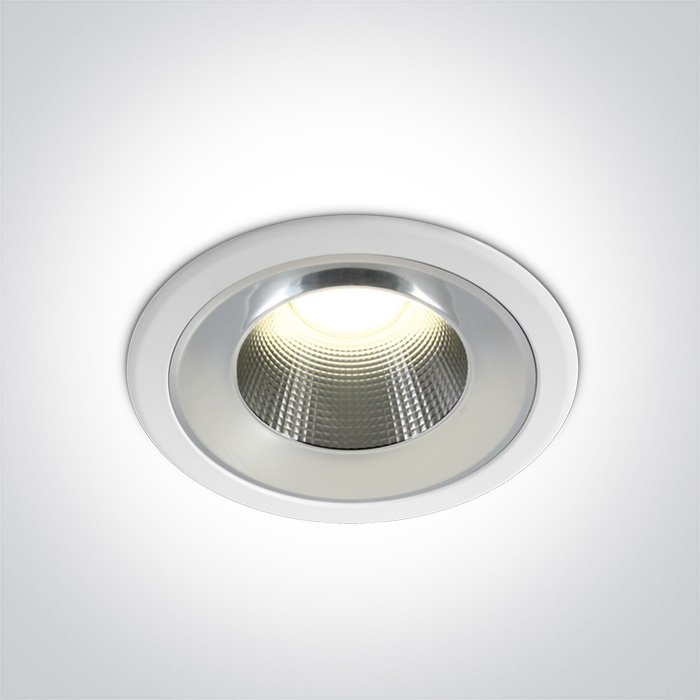

10118TD/W/C
18W LED recessed downlight, IP54. Suitable for Indoor/Outdoor
installation.
Complete with 450mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 450mA driver.
Complies with standard EN60598-1 and any other specific standards.

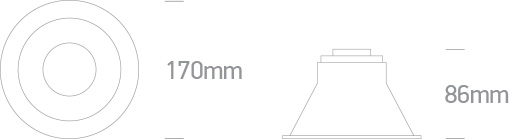

Dimensions
Downloads
Physical Specification
Item Group
05 Downlights Fixed
Family
The Dark Light Project Range
Order Code
10118TD/W/C
Colour
White
Material
Aluminium
Shape
Circular
Height
86mm
Diameter
170mm
Cutout Hole Diameter
150mm
Recessed Ceiling
Yes
Depth Required
120mm
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
18W
IP Rating
IP54
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
450mA
Voltage
39V
Safety Class
Power (Watts)
17,55W
IP Rating
IP54
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Epistar
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
13,5-18W
Power Factor
0,9
Constant Current
Yes
450mA
30-40V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
4000K
Lumen Output
1710lm
Light Efficiency
95lm/W
CRI
80
Beam Angle
60°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
19cm
Box Width
19cm
Box Height
9,6cm
Box Weight
0.462kg
Pcs/Carton
24
Barcode
5291889069676
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
