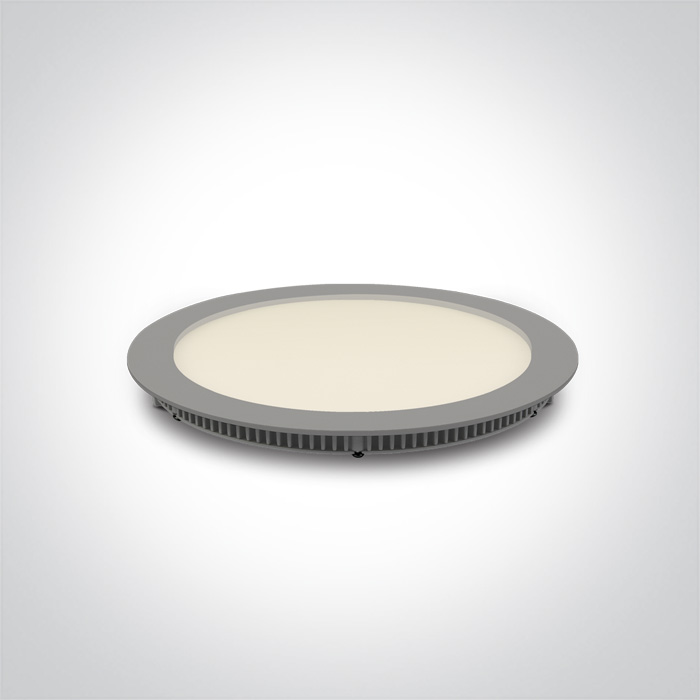

06 Downlights Fixed LED > The 18-30W Round Recessed Panels Die cast
10118FA/G/W
18W slim downlight LED, IP40, ideal for commercial
applications such as offices, galleries and showrooms.
Supplied with 450mA non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with 450mA non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
06 Downlights Fixed LED
Family
The 18-30W Round Recessed Panels Die cast
Order Code
10118FA/G/W
Colour
Grey
Material
Die Cast
Diffuser Material
Acrylic
Shape
Circular
Height
22mm
Diameter
223mm
Cutout Hole Diameter
210mm
Recessed Ceiling
Yes
Depth Required
50mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
18W
IP Rating
IP40
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
450mA
Voltage
38V
Safety Class
Power (Watts)
17,1W
IP Rating
IP40
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Epistar
LED Number
96
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
12,1-19W
Power Factor
0,9
Constant Current
Yes
450mA
27-42V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
50°C
Operating Temp
75°C
Housing Material
Plastic
Illumination Data
Colour Temperature
3000K
Lumen Output
1080lm
Light Efficiency
60lm/W
CRI
80
Beam Angle
120°
Illumination Diagram
Packing Info
Box Length
28cm
Box Width
23,5cm
Box Height
3,5cm
Box Weight
0.615kg
Pcs/Carton
20
Barcode
5291889042815
HS Code
9405119090
Energy Label
Certification & Warranty
Warranty
2 years
Average Lifetime
30000 hours
Wee Directive
Yes
Year in which the CE mark was affixed
17
