06 Downlights Fixed LED > The IP54 Bathroom Downlights
10118B/W/W

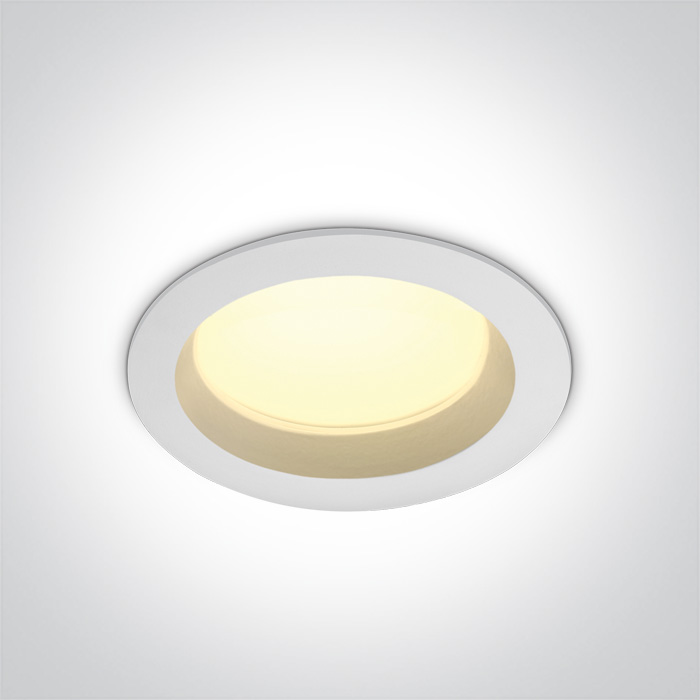

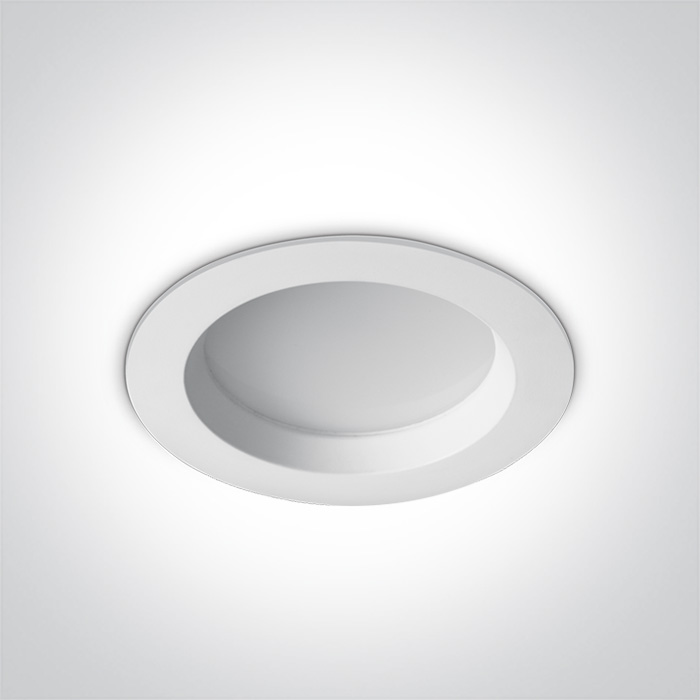

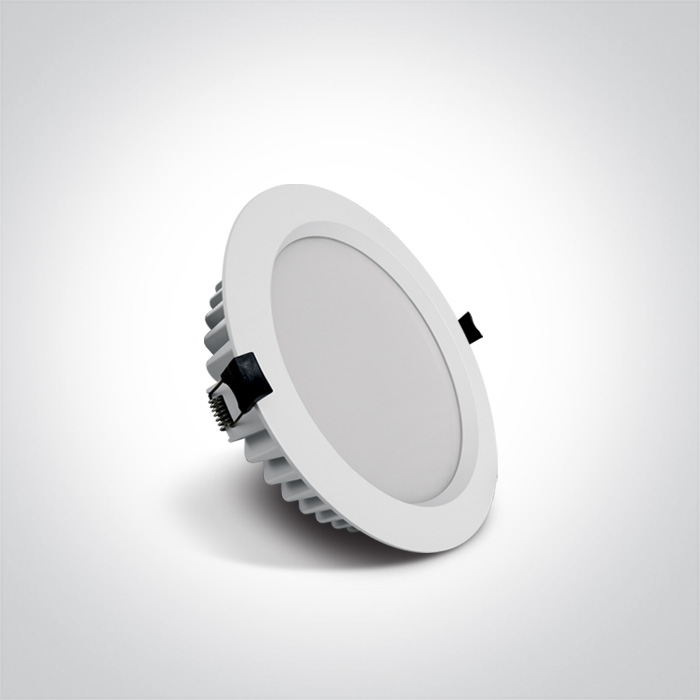

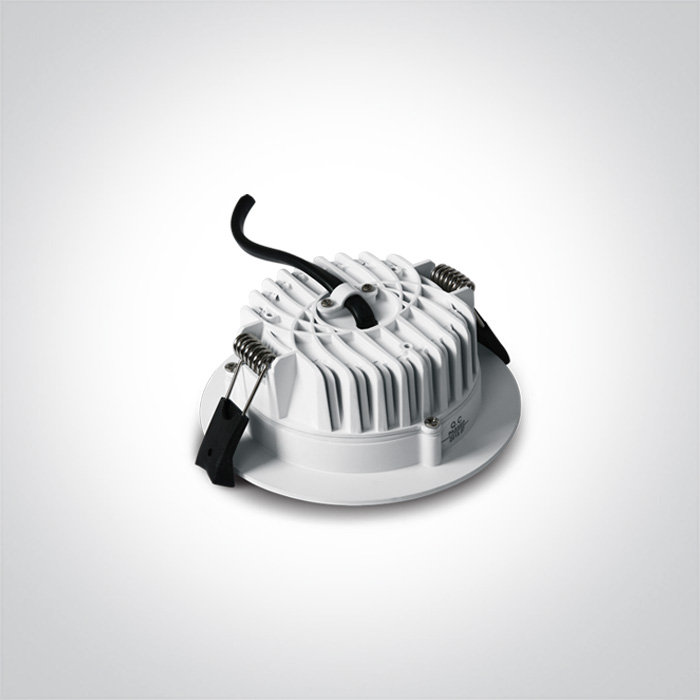

18W LED recessed downlight, IP54. Suitable for bathroom
installations.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

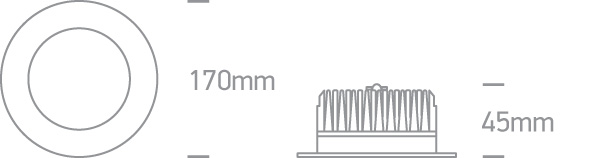

Dimensions
Downloads
Physical Specification
Item Group
06 Downlights Fixed LED
Family
The IP54 Bathroom Downlights
Order Code
10118B/W/W
Colour
White
Material
Die Cast
Diffuser Material
Plastic
Shape
Circular
Height
45mm
Diameter
170mm
Cutout Hole Diameter
140mm
Recessed Ceiling
Yes
Depth Required
70mm
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
18W
IP Rating
IP54
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
500mA
Voltage
34V
Safety Class
Power (Watts)
17W
IP Rating
IP54
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Epistar
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
13,5-20W
Power Factor
0,9
Constant Current
Yes
500mA
27-40V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
45°C
Operating Temp
80°C
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
1300lm
Light Efficiency
72,22lm/W
CRI
80
Beam Angle
90°
Illumination Diagram
Packing Info
Box Length
18,5cm
Box Width
18,5cm
Box Height
9cm
Box Weight
0.776kg
Pcs/Carton
30
Barcode
5291889057703
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Average Lifetime
40000hrs
Wee Directive
Yes
Year in which the CE mark was affixed
16
