05 Downlights Fixed > The Dark Light Dome Reflector Aluminium
10116FD/B/BS

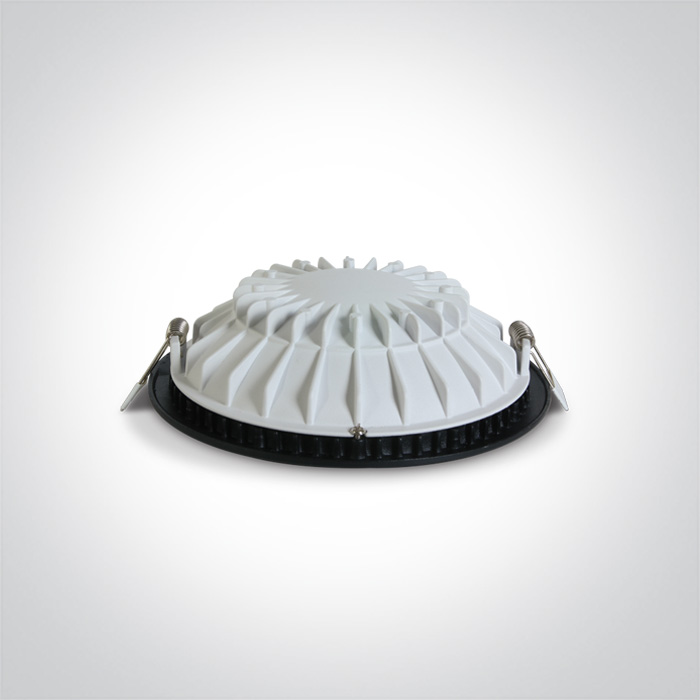

16W LED Dark Light Dome Reflector, IP20.
Complete with 300mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 300mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
05 Downlights Fixed
Family
The Dark Light Dome Reflector Aluminium
Order Code
10116FD/B/BS
Colour
Black-Brass
Material
Die Cast
Shape
Circular
Height
50mm
Diameter
170mm
Cutout Hole Diameter
155mm
Recessed Ceiling
Yes
Depth Required
80mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
16W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
300mA
Voltage
50V
Safety Class
Power (Watts)
15W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Sanan
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
13,5-18W
Power Factor
0,9
Constant Current
Yes
300mA
45-60V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
800lm
Light Efficiency
50lm/W
CRI
80
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
19,5cm
Box Width
17,5cm
Box Height
5,5cm
Box Weight
0.390kg
Pcs/Carton
20
Barcode
5291889063810
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Average Lifetime
30000hrs
Wee Directive
Yes
Year in which the CE mark was affixed
19
