05 Downlights Fixed > The Honeycomb Dark Light CCT V

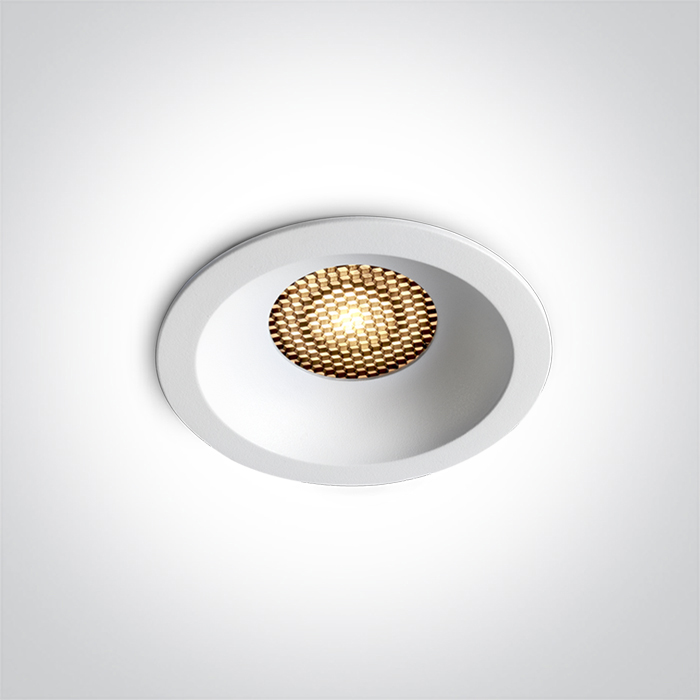

10114DH/W/V
14W CCT Variable COB recessed downlight with honeycomb.
Complete with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.

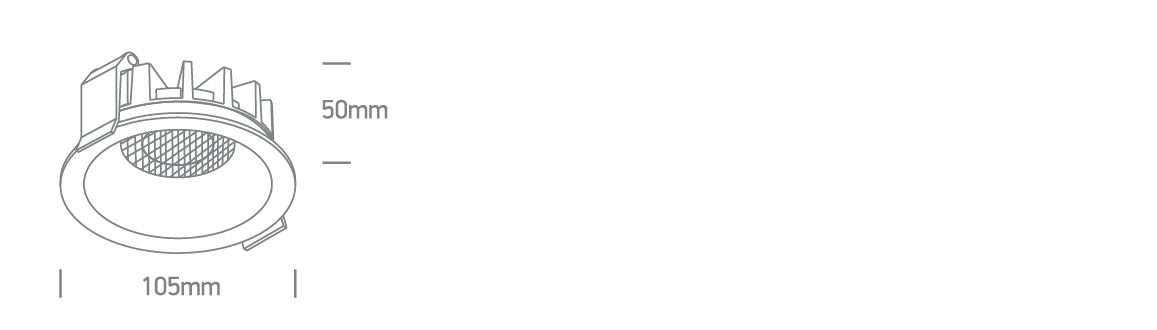

Dimensions
Downloads
Physical Specification
Item Group
05 Downlights Fixed
Family
The Honeycomb Dark Light CCT V
Order Code
10114DH/W/V
Colour
White
Material
Aluminium
Shape
Circular
Height
50mm
Diameter
105mm
Cutout Hole Diameter
95mm
Recessed Ceiling
Yes
Depth Required
60mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
14W
IP Rating
IP20
Light Source
LED built in
F Mark
Fitting
Input Type
Constant Current
Input Current
350mA
Light Source
LED built in
LED Type
COB
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Output
350mA
Illumination Data
Colour Temperature
3000K-3500K-4000K
Lumen Output
1120lm
Light Efficiency
80lm/W
CRI
90
Beam Angle
36
Illumination Diagram
Dark Light
Yes
Packing Info
Pcs/Carton
30
Barcode
5291889092643
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
