05 Downlights Fixed > The IP54 Downlights CCT V
10113B/W/V
13W LED CCT Variable recessed downlight, IP54. Suitable for bathroom
installations.
Complete with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.

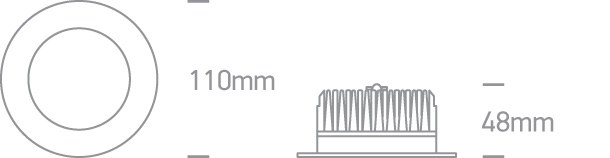

Dimensions
Downloads
Physical Specification
Item Group
05 Downlights Fixed
Family
The IP54 Downlights CCT V
Order Code
10113B/W/V
Colour
White
Material
Die Cast
Diffuser Material
Plastic
Shape
Circular
Height
48mm
Diameter
110mm
Cutout Hole Diameter
95mm
Recessed Ceiling
Yes
Depth Required
70mm
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
13W
IP Rating
IP54
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
300mA
Safety Class
IP Rating
IP54
Light Source
LED built in
LED Type
SMD 2835
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Constant Current
Yes
Output
300mA
IP Rating
IP20
Safety Class
Dimmable
No
Illumination Data
Colour Temperature
3000K-4000K-5000K
Lumen Output
950lm
Light Efficiency
73lm/W
CRI
80
Beam Angle
90°
Illumination Diagram
Packing Info
Box Length
11,5cm
Box Width
11,5cm
Box Height
9cm
Box Weight
0.312kg
Pcs/Carton
24
Barcode
5291889082354
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
24
