02 Recessed Spots Fixed LED > The COB Curved Reflector IP65 Range
10112C/W/V
12W CCT Variable COB recessed spot, IP65.
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards.

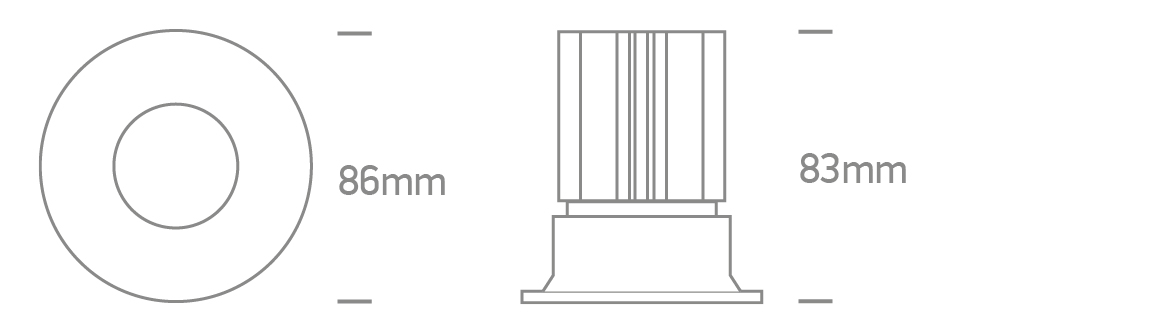

Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The COB Curved Reflector IP65 Range
Order Code
10112C/W/V
Colour
White
Material
Aluminium
Shape
Circular
Height
83mm
Diameter
86mm
Cutout Hole Diameter
75mm
Recessed Ceiling
Yes
Depth Required
100mm
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
700mA
Safety Class
Power (Watts)
12W
IP Rating
IP65
Light Source
LED built in
LED Type
COB
Cable Length
40cm
Fast Connector
One Light 700
F Mark
Illumination Data
Colour Temperature
3000K-3500K-4000K
Lumen Output
1200lm
Light Efficiency
100lm/W
CRI
90
Beam Angle
38°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.350kg
Pcs/Carton
50
Barcode
5291889084266
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
