02 Recessed Spots Fixed LED > The Trimless 12W Range Aluminium
.jpg)
10112BTR/BS/V

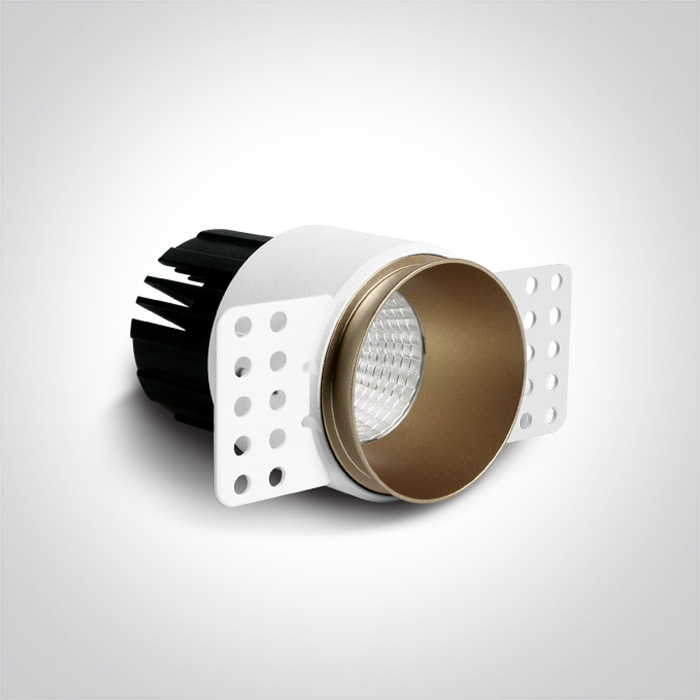

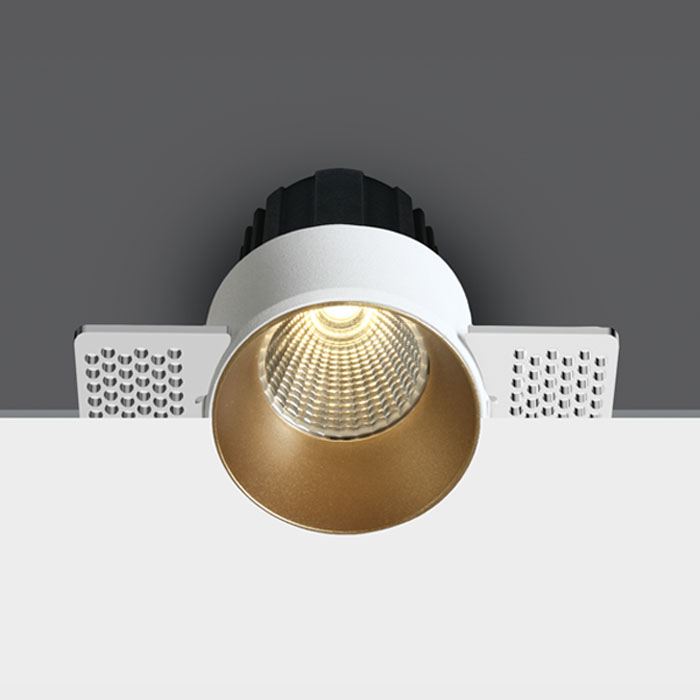

12W CCT Variable COB LED 2-Step Trimless Recessed spot, IP20.
Requires 700mA constant current driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 700mA constant current driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The Trimless 12W Range Aluminium
Order Code
10112BTR/BS/V
Colour
Brass
Material
Aluminium
Shape
Circular
Height
85mm
Diameter
64mm
Cutout Hole Diameter
70mm
Recessed trimmless ceiling
Yes
Depth Required
100mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
700mA
Safety Class
Power (Watts)
12W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
Cable Length
40cm
Fast Connector
One Light 700
F Mark
Illumination Data
Colour Temperature
3000K-3500K-4000K
Lumen Output
1200lm
Light Efficiency
100lm/W
CRI
90
Beam Angle
38°
Illumination Diagram
Dark Light
Yes
Packing Info
Pcs/Carton
48
Barcode
5291889088011
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
