05 Downlights Fixed > UGR 19 CCT V Office Range Round
10110U/W/V

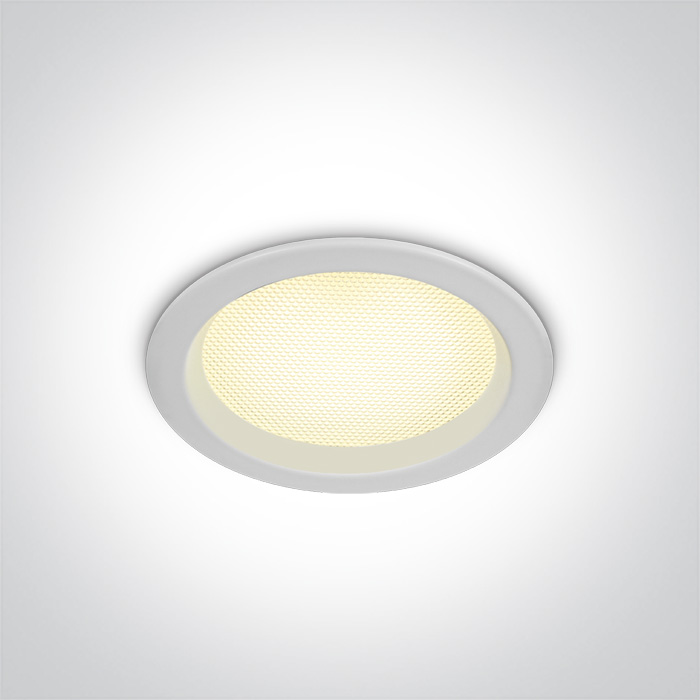

10W SMD LED UGR19 CCT Variable downlight, IP44.
Complete with 200mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 200mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
05 Downlights Fixed
Family
UGR 19 CCT V Office Range Round
Order Code
10110U/W/V
Colour
White
Material
Die Cast
Diffuser Material
Plastic
Shape
Circular
Height
35mm
Diameter
95mm
Cutout Hole Diameter
86mm
Recessed Ceiling
Yes
Depth Required
55mm
Indoor
Yes
Adjustable
No
IK Rating
4
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
10W
IP Rating
IP44
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
200mA
Safety Class
IP Rating
IP44
Light Source
LED built in
LED Type
SMD 2835
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Constant Current
Yes
IP Rating
IP44
Safety Class
Dimmable
No
Illumination Data
Colour Temperature
3000K-4000K-6000K
Lumen Output
850lm
Light Efficiency
85lm/W
CRI
90
Illumination Diagram
Packing Info
Box Weight
0.280kg
Pcs/Carton
40
Barcode
5291889080862
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
24
