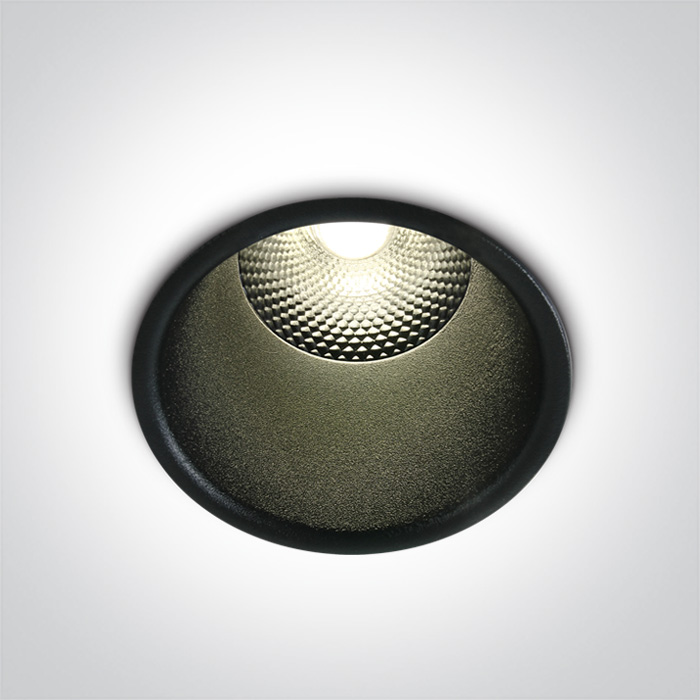

02 Recessed Spots Fixed LED > The Dark Light Pro Range Aluminium CCT V
10110FD/B/V
10W CCT Variable COB LED recessed spot, IP20.
Complete with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.

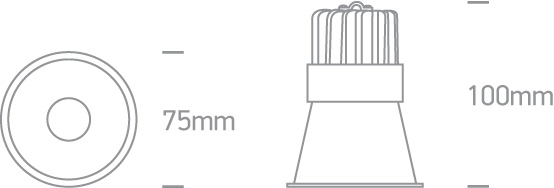

Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The Dark Light Pro Range Aluminium CCT V
Order Code
10110FD/B/V
Colour
Black
Material
Aluminium
Shape
Circular
Height
100mm
Diameter
75mm
Cutout Hole Diameter
68mm
Recessed Ceiling
Yes
Depth Required
130mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
10W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Light Source
LED built in
LED Type
COB
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Output
300mA
Dimmable
No
Illumination Data
Colour Temperature
3000K-3500K-4000K
Lumen Output
800lm
Light Efficiency
80lm/W
CRI
90
Beam Angle
24°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.266kg
Pcs/Carton
50
Barcode
5291889086772
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
