05 Downlights Fixed > The COB Downlight Range CCT V

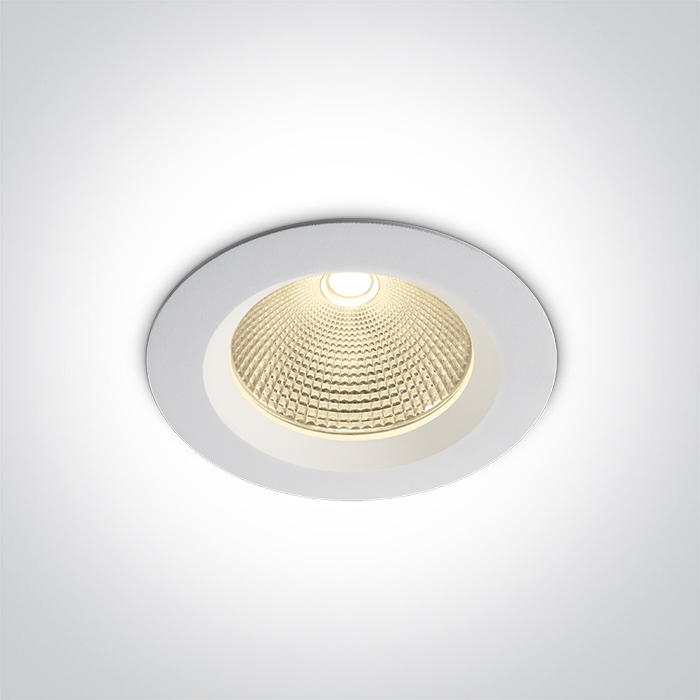

10110CA/W/V
10W CCT Variable LED recessed downlight, IP20.
Complete with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.

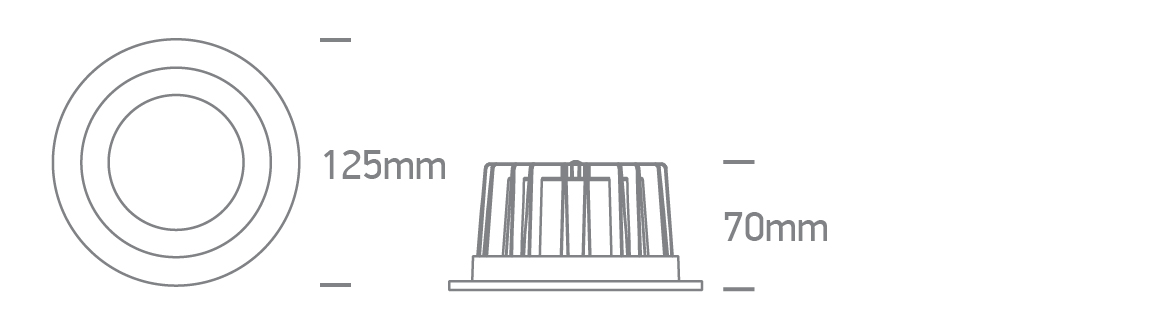

Dimensions
Downloads
Physical Specification
Item Group
05 Downlights Fixed
Family
The COB Downlight Range CCT V
Order Code
10110CA/W/V
Colour
White
Material
Aluminium
Shape
Circular
Height
70mm
Diameter
125mm
Cutout Hole Diameter
100mm
Recessed Ceiling
Yes
Depth Required
100mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
10W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
250mA
Light Source
LED built in
LED Type
COB
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Output
250mA
Illumination Data
Colour Temperature
3000K-4000K-5000K
Lumen Output
850lm
Light Efficiency
85lm/W
CRI
90
Beam Angle
60°
Illumination Diagram
Packing Info
Box Weight
0.400kg
Pcs/Carton
50
Barcode
5291889085287
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
