05 Downlights Fixed > The IP54 & IP65 SMD Dark Light Range CCT V
10109FD/B/V

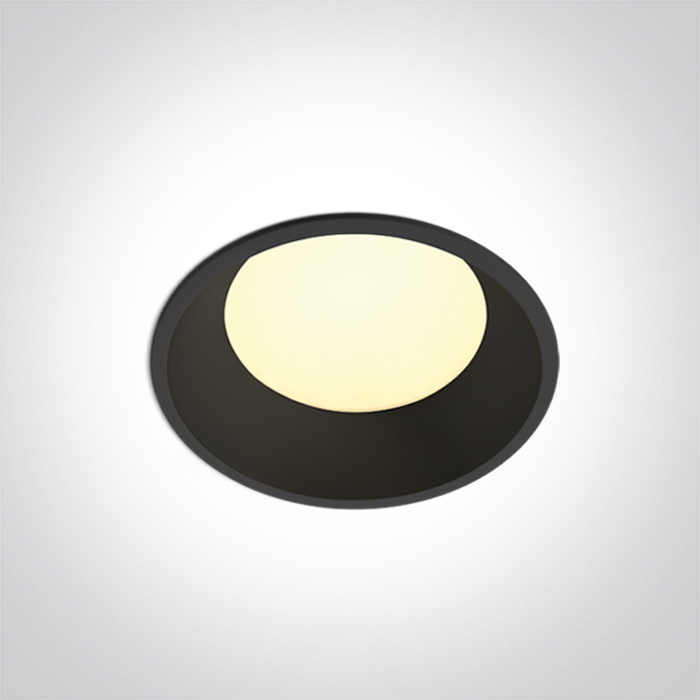

9W CCT Variable Dark Light SMD LED recessed downlight ideal for bathroom installations, IP65.
Complete with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
05 Downlights Fixed
Family
The IP54 & IP65 SMD Dark Light Range CCT V
Order Code
10109FD/B/V
Colour
Black
Material
Die Cast
Shape
Circular
Height
58mm
Diameter
120mm
Cutout Hole Diameter
111mm
Recessed Ceiling
Yes
Depth Required
80mm
Indoor
Yes
Outdoor
Yes
Adjustable
No
IK Rating
7
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
9W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Safety Class
IP Rating
IP65
Light Source
LED built in
LED Type
SMD
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Output
220mA
IP Rating
IP20
Safety Class
Dimmable
No
Illumination Data
Colour Temperature
3000K-4000K-5000K
Lumen Output
900lm
Light Efficiency
100lm/W
CRI
90
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.340kg
Pcs/Carton
40
Barcode
5291889082835
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
24
