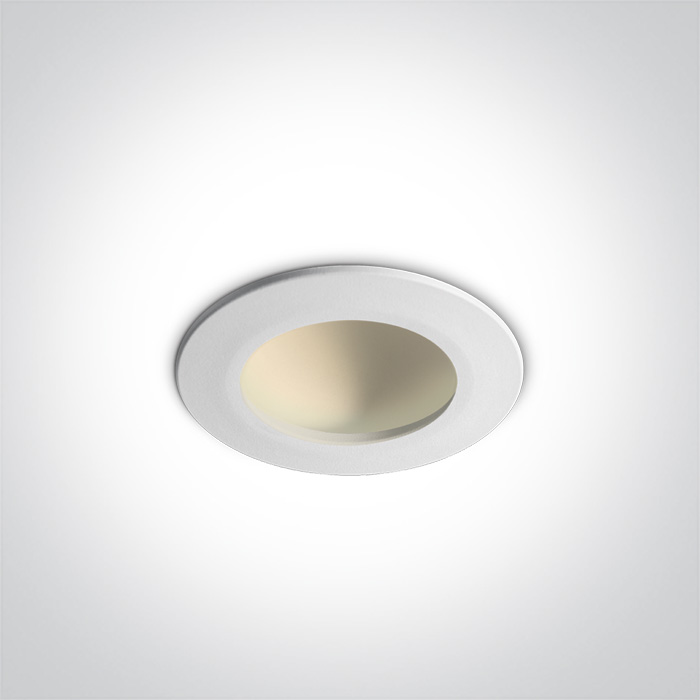

05 Downlights Fixed > The Dark Light Dome Reflector Aluminium
10108FD/W/W
8W LED Dark Light Dome Reflector, IP20.
Complete with 300mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 300mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
05 Downlights Fixed
Family
The Dark Light Dome Reflector Aluminium
Order Code
10108FD/W/W
Colour
White
Material
Die Cast
Shape
Circular
Height
30mm
Diameter
105mm
Cutout Hole Diameter
94mm
Recessed Ceiling
Yes
Depth Required
60mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
8W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
300mA
Voltage
25V
Safety Class
Power (Watts)
7,5W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Sanan
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
4,5-7,5W
Power Factor
0,5
Constant Current
Yes
300mA
15-25V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
560lm
Light Efficiency
70lm/W
CRI
80
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
13cm
Box Width
11,5cm
Box Height
4cm
Box Weight
0.206kg
Pcs/Carton
45
Barcode
5291889051589
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Average Lifetime
30000hrs
Wee Directive
Yes
Year in which the CE mark was affixed
17
