05 Downlights Fixed > The 3-12W Round Recessed Panels Aluminium
10108FA/W/C

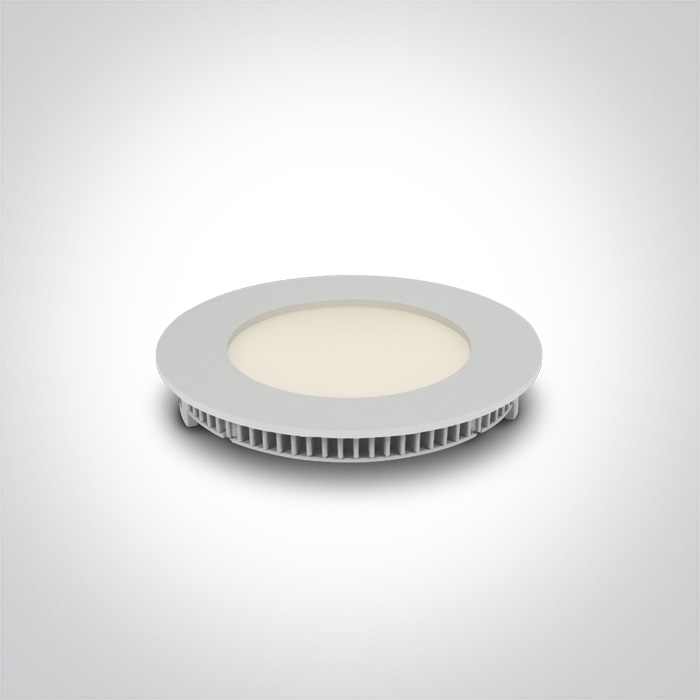

8W slim downlight LED, IP40, ideal for commercial
applications such as offices, galleries and showrooms.
Supplied with 300mA non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with 300mA non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
05 Downlights Fixed
Family
The 3-12W Round Recessed Panels Aluminium
Order Code
10108FA/W/C
Colour
White
Material
Die Cast
Diffuser Material
Acrylic
Shape
Circular
Height
22mm
Diameter
120mm
Cutout Hole Diameter
108mm
Recessed Ceiling
Yes
Depth Required
50mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
8W
IP Rating
IP40
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
300mA
Voltage
23V
Safety Class
Power (Watts)
6,9W
IP Rating
IP40
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Epistar
LED Number
42
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
4,2-7,2W
Power Factor
0,6
Constant Current
Yes
Voltage Range
14-24V
Output
300mA
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
50°C
Operating Temp
75°C
Housing Material
Plastic
Illumination Data
Colour Temperature
4000K
Lumen Output
560lm
Light Efficiency
70lm/W
CRI
80
Beam Angle
120°
Illumination Diagram
Packing Info
Box Length
18,5cm
Box Width
3,1cm
Box Height
13cm
Box Weight
0.242kg
Pcs/Carton
40
Barcode
5291889044055
HS Code
9405119090
Energy Label
Certification & Warranty
Warranty
2 years
Average Lifetime
30000 hours
Wee Directive
Yes
Year in which the CE mark was affixed
16
