06 Downlights Fixed LED > The Dark Light Downlights
10108ED/W/B/W

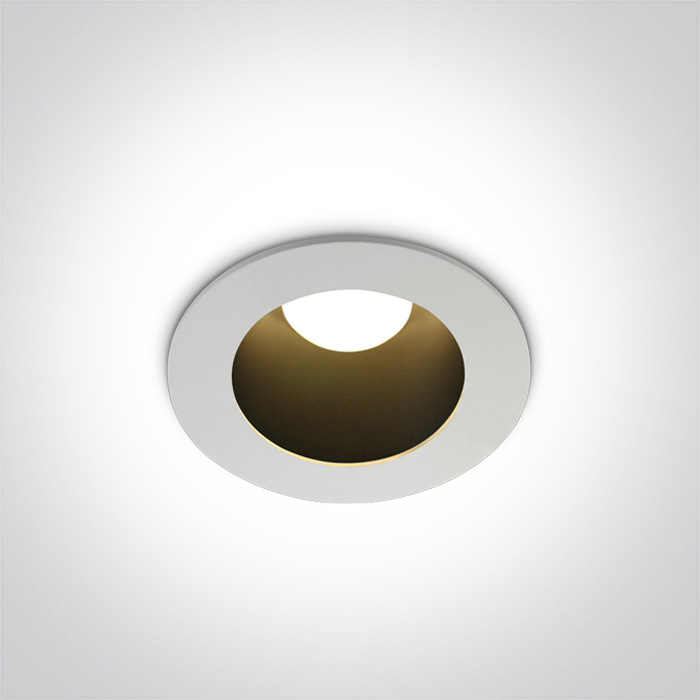

8W COB LED recessed downlight, for general lighting
applications.
Complete with 300mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 300mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
06 Downlights Fixed LED
Family
The Dark Light Downlights
Order Code
10108ED/W/B/W
Colour
White-Black
Material
Aluminium
Shape
Circular
Height
60mm
Diameter
95mm
Cutout Hole Diameter
75mm
Recessed Ceiling
Yes
Depth Required
80mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
8W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
300mA
Voltage
20V
Safety Class
Power (Watts)
6W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Sanan
LED Number
1
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
4,2-7,2W
Power Factor
0,5
Constant Current
Yes
300mA
14-24V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
480lm
Light Efficiency
60lm/W
CRI
80
Beam Angle
60°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
11,5cm
Box Width
11,5cm
Box Height
8cm
Box Weight
0.254kg
Pcs/Carton
50
Barcode
5291889058649
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
