05 Downlights Fixed > UGR19 CCT V Range

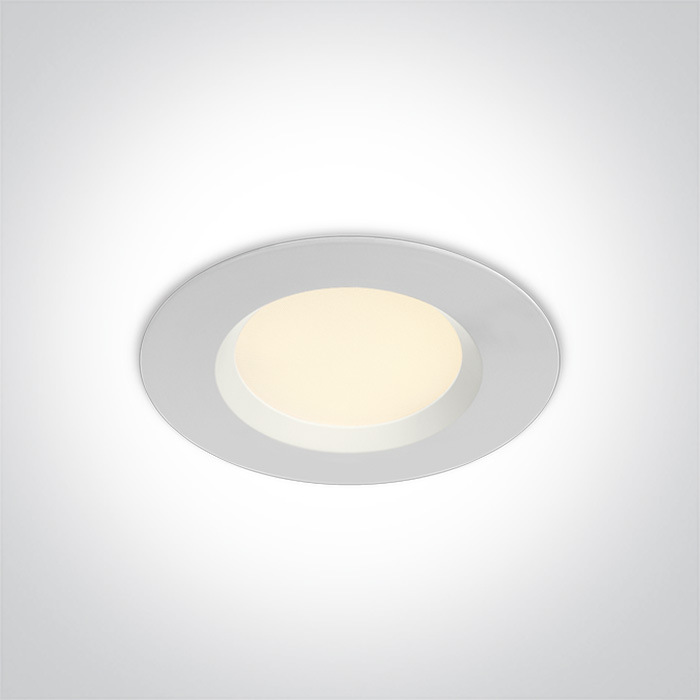

10107UV/W/V
7W SMD LED UGR19 downlight with adjustable CCT, IP44.
Complete with 200mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 200mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
05 Downlights Fixed
Family
UGR19 CCT V Range
Order Code
10107UV/W/V
Colour
White
Material
Die Cast
Shape
Circular
Height
40mm
Diameter
95mm
Cutout Hole Diameter
70mm
Recessed Ceiling
Yes
Depth Required
60mm
Indoor
Yes
Adjustable
No
IK Rating
4
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
7W
IP Rating
IP44
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
180mA
Voltage
38V
Safety Class
Power (Watts)
6,84W
IP Rating
IP44
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Epistar
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
5,4-8,4W
Power Factor
0,9
Constant Current
Yes
Voltage Range
25-42V
Output
180mA
IP Rating
IP44
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K-4000K-6000K
Lumen Output
525lm
Light Efficiency
75lm/W
CRI
90
Illumination Diagram
Packing Info
Box Weight
0.222kg
Pcs/Carton
40
Barcode
5291889064817
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Average Lifetime
30000hrs
Wee Directive
Yes
Year in which the CE mark was affixed
19
