02 Recessed Spots Fixed LED > The COB IP54 Range
.jpg)
.jpg)
10107M/W/W

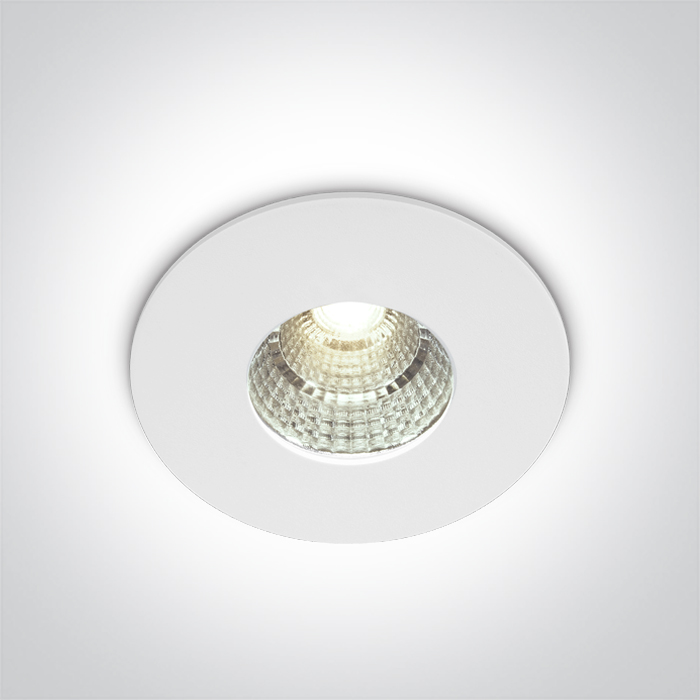

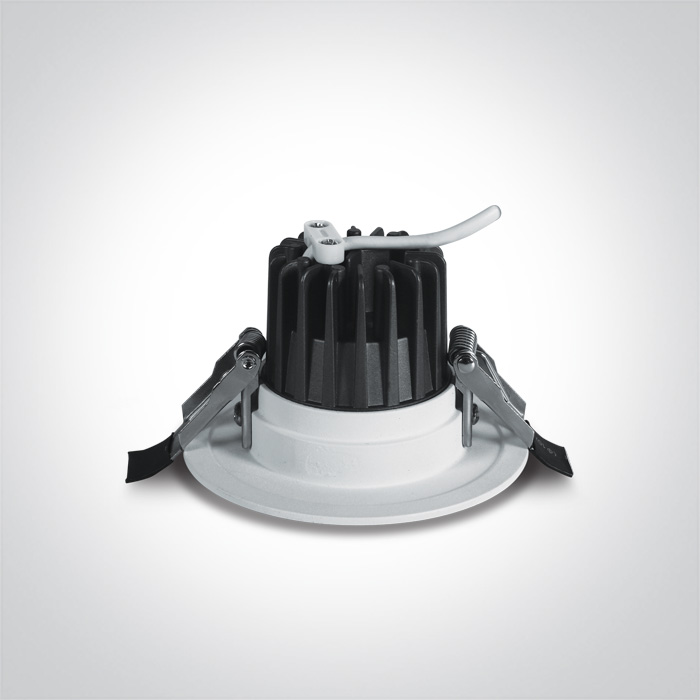

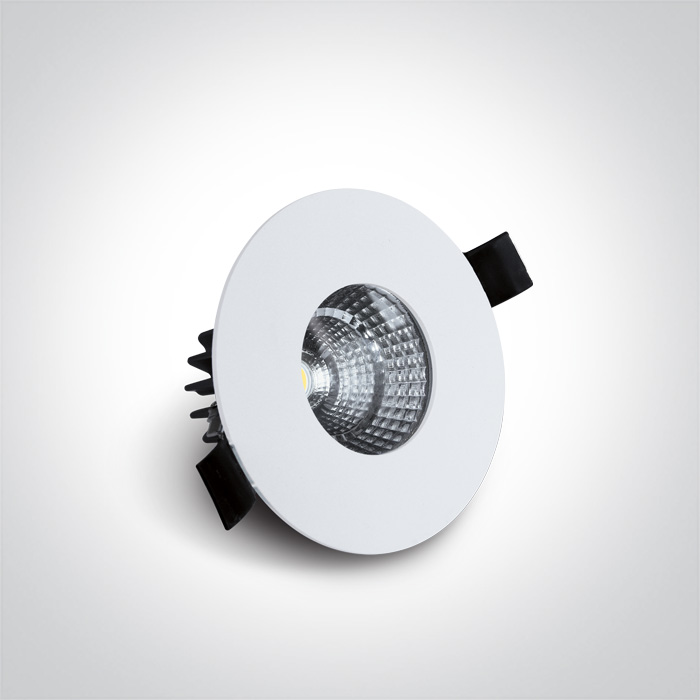

7W COB LED recessed spot with IP54.
Complete with 300mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 300mA driver.
Complies with standard EN60598-1 and any other specific standards.

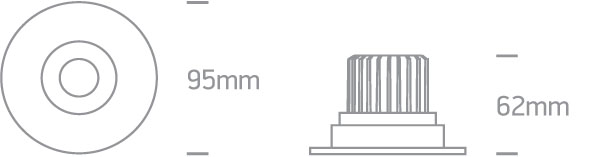

Dimensions
Downloads
.jpg){kind=small}
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The COB IP54 Range
Order Code
10107M/W/W
Colour
White
Material
Die Cast
Shape
Circular
Height
62mm
Diameter
95mm
Cutout Hole Diameter
68mm
Recessed Ceiling
Yes
Depth Required
80mm
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
7W
IP Rating
IP54
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
300mA
Voltage
20,4V
Safety Class
Power (Watts)
6,12W
IP Rating
IP54
Light Source
LED built in
LED Type
COB
LED Brand
Bridgelux
LED Number
1
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
4,2-7,2W
Power Factor
0,8
Constant Current
Yes
300mA
14-24V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
490lm
Light Efficiency
70lm/W
CRI
90
Beam Angle
40°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.262kg
Pcs/Carton
50
Barcode
5291889071020
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
21
