02 Recessed Spots Fixed LED > The LED Decorative Range

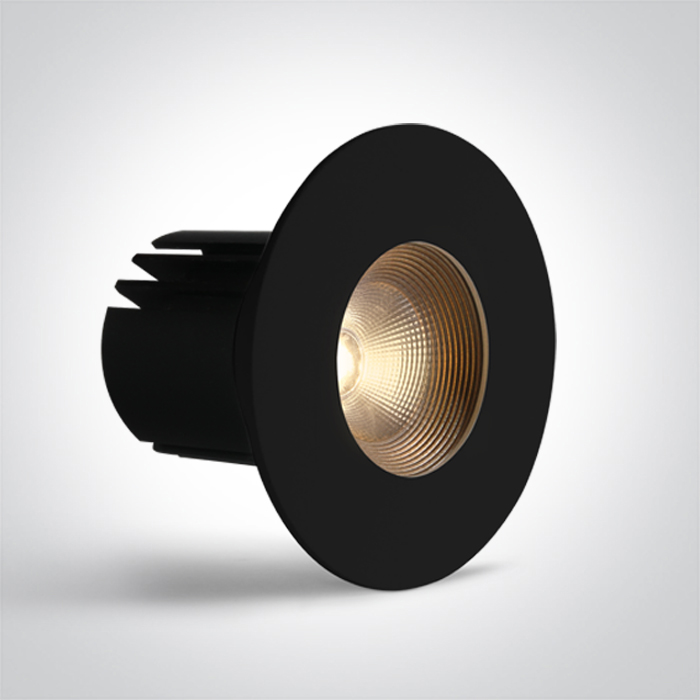

10107HA/B/V

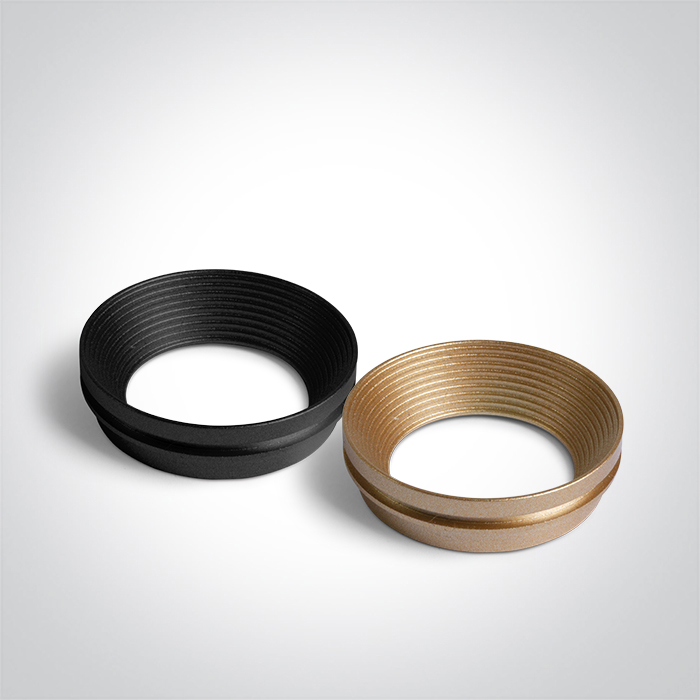

6,5W CCT Variable COB LED. Complete with Black & Brass reflectors.
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The LED Decorative Range
Order Code
10107HA/B/V
Colour
Black
Material
Aluminium
Shape
Circular
Height
60mm
Diameter
80mm
Cutout Hole Diameter
68mm
Recessed Ceiling
Yes
Depth Required
80mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
700mA
Safety Class
Power (Watts)
6,5W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
Cable Length
40cm
Fast Connector
One Light 700
F Mark
Illumination Data
Colour Temperature
3000K-3500K-4000K
Lumen Output
650lm
Light Efficiency
100lm/W
CRI
90
Beam Angle
38°
Illumination Diagram
Packing Info
Box Weight
0.192kg
Pcs/Carton
50
Barcode
5291889081524
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
